Reinstall the right cover
1. Slide the cover on to the product from the front. Make sure the cover is aligned correctly at the
top. The top of the cover should slide over the chassis and the lower section of the cover should
slide behind the chassis.

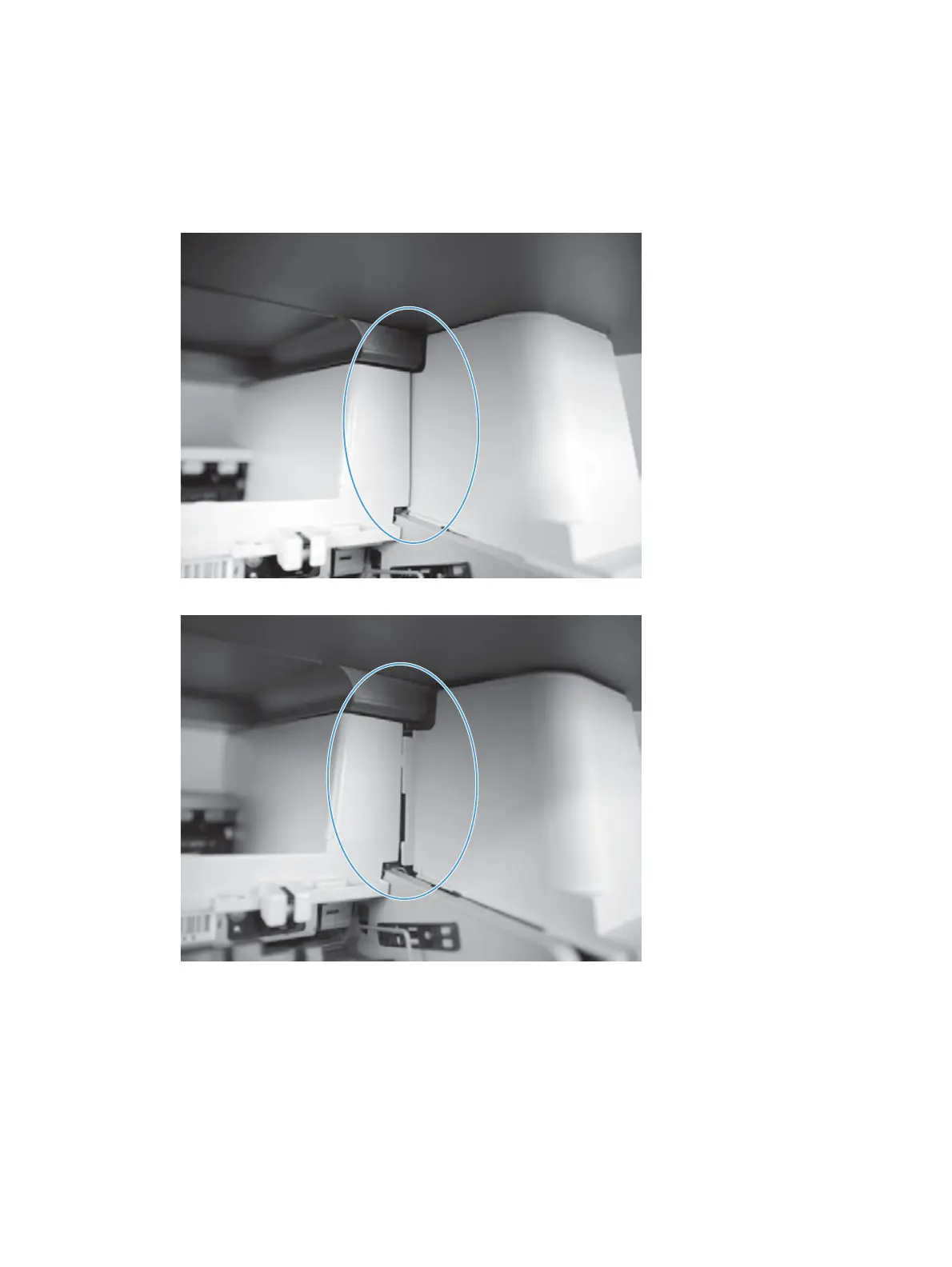

Figure 1-96 Reinstall the right cover assembly: correct alignment
Figure 1-97 Reinstall the right cover assembly: incorrect alignment
