5. Raise the right side of the product (callout 1), slide the lower-right cover (callout 2) toward the front
of the product, and then rotate the cover away from the product.

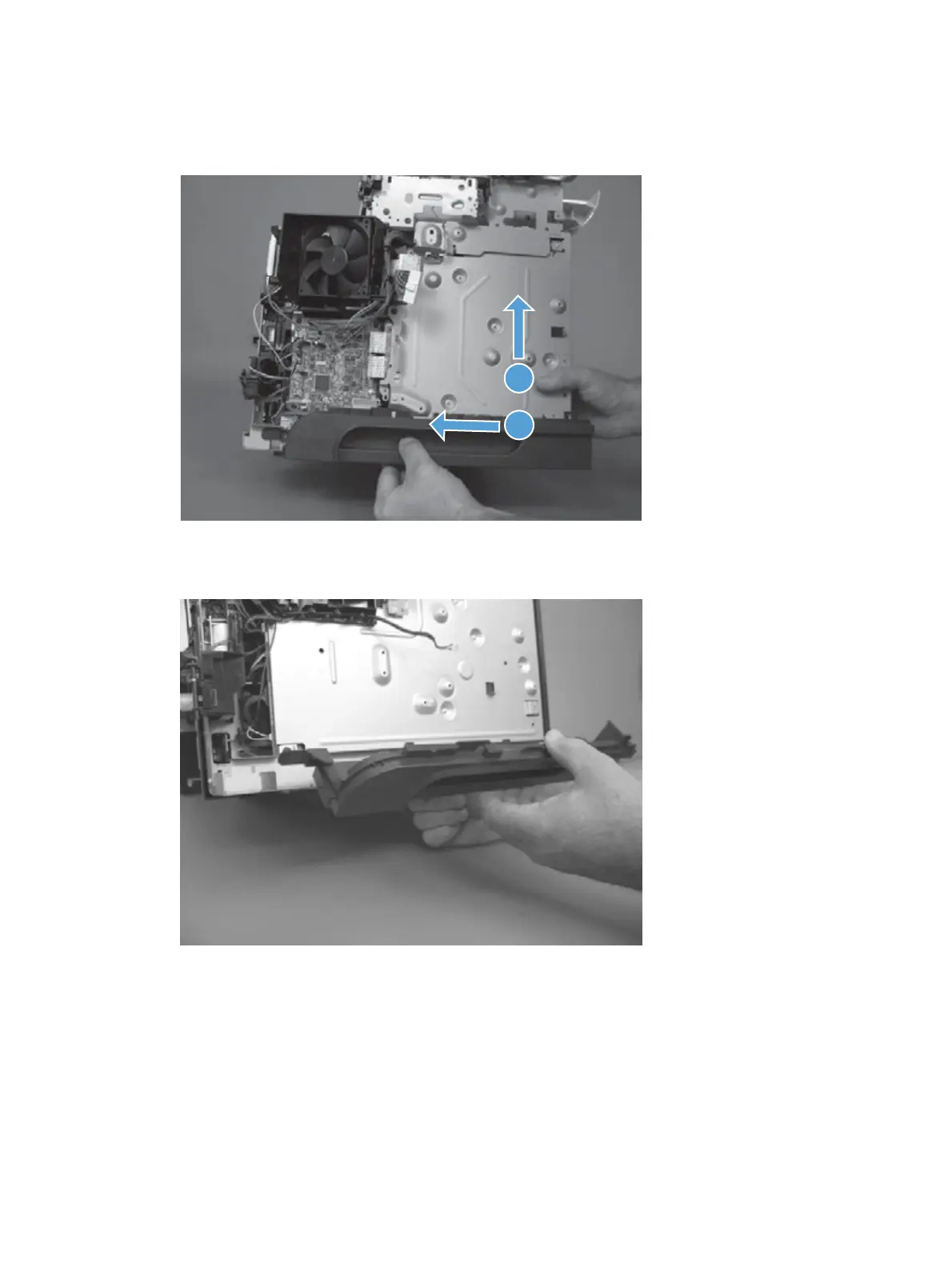

Figure 1-102 Remove the right handle cover and bracket (4 of 5)
1
2
6. Remove the lower-right cover.
Figure 1-103 Remove the right handle cover and bracket (5 of 5)
68 Chapter 1 Removal and replacement ENWW
