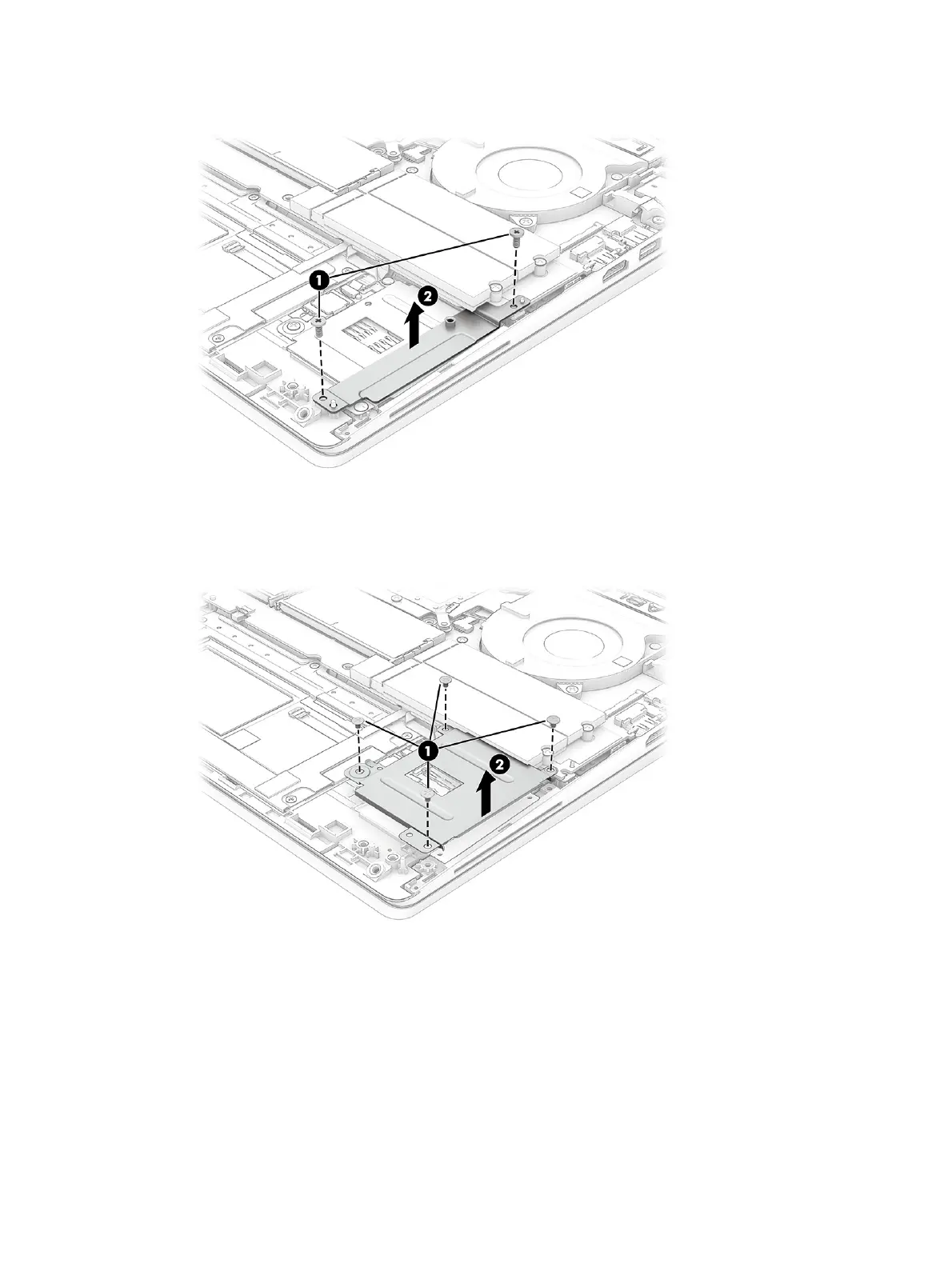

2. Remove the battery support bracket (2).
3. Remove the four Phillips M2.0 × 2.5 screws (1) that secure the card reader bracket to the computer.
4. Remove the card reader bracket (2).
5. Disconnect the card reader board cable from the ZIF connector (1) on the card reader board.
Card reader board
