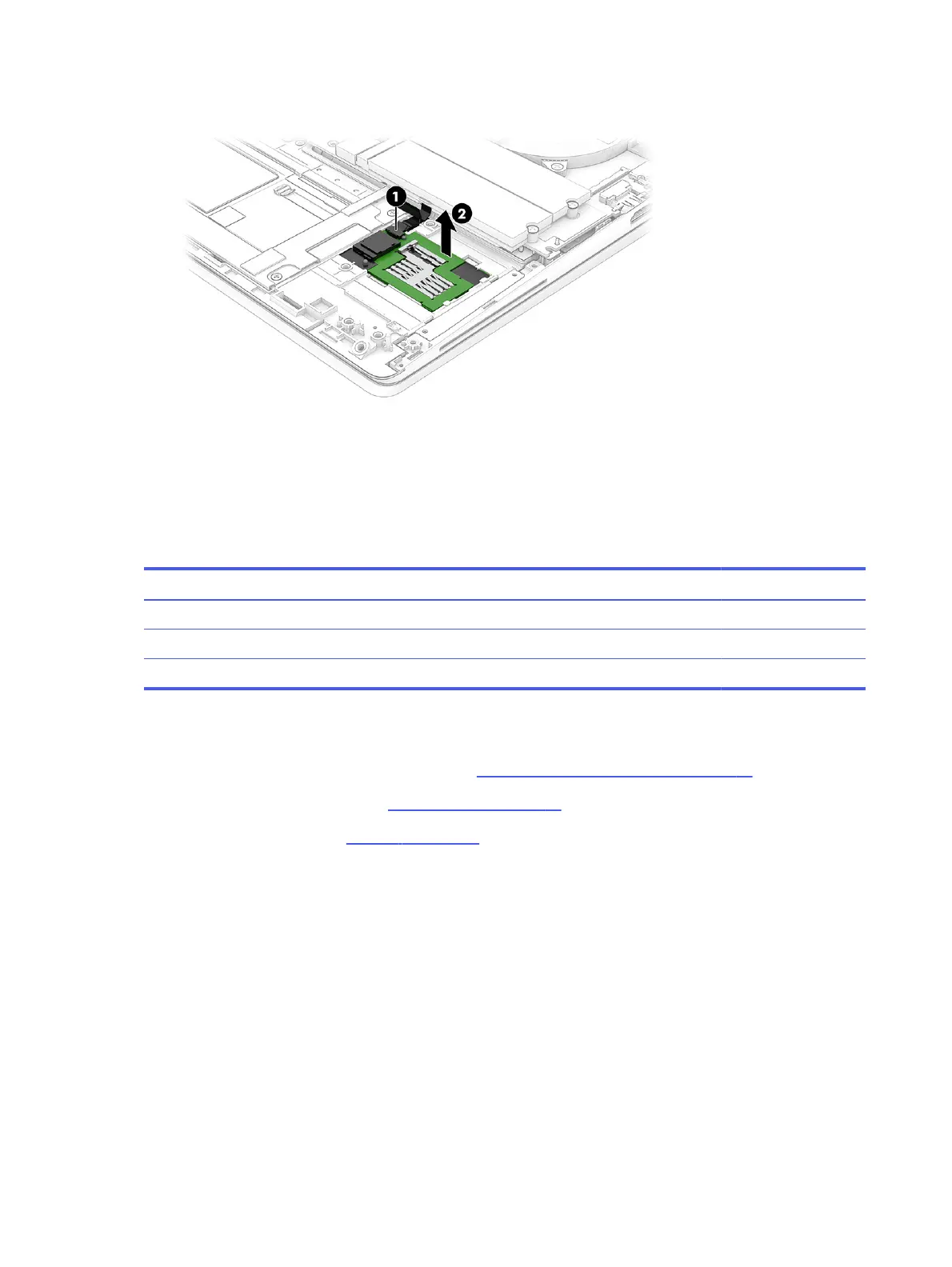

6. Remove the card reader board (2).
To install the card reader board, reverse this procedure.
NFC module
To remove the NFC module, use this procedure and illustration.
Table 5-8
NFC module description and part number
Description Spare part number
NFC module L02249-001
NFC module cable N56092-001
NFC antenna N06908-001
Before removing the NFC module, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Remove the battery (see Battery on page 39).
Remove the NFC module:
1. Disconnect the system board cable from the ZIF connector (1) on the NFC module.
2. Disconnect the NFC antenna cable from the ZIF connector (2) on the NFC module.
48
Chapter 5 Removal and replacement procedures for authorized service provider parts
