Table 5-10 Fans descriptions and part numbers
Description Spare part number
Fan Kit (includes left processor fan and right graphics fan) N32583-001
Before removing the fans, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Disconnect the battery cable from the system board (see Battery on page 39).

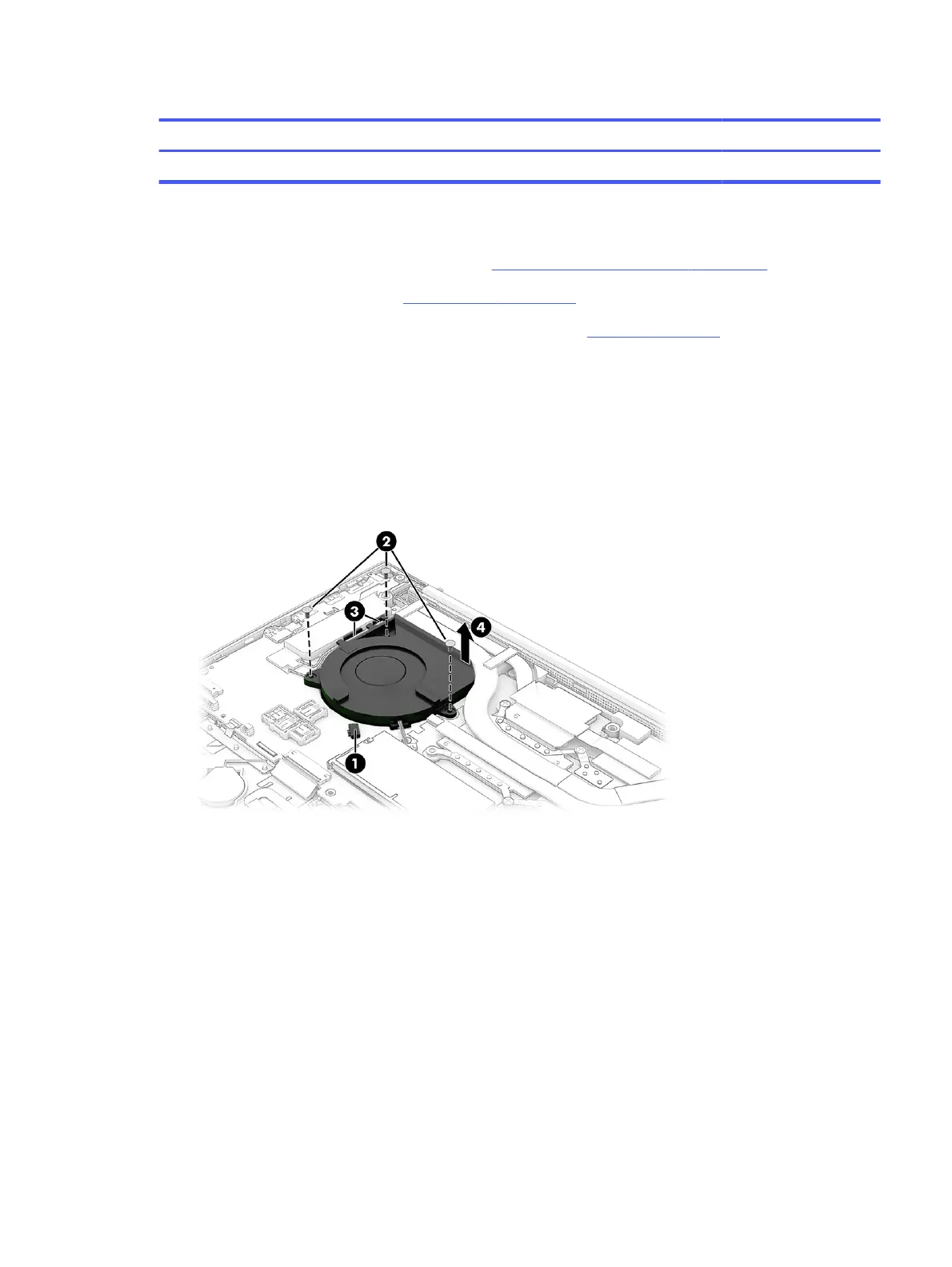

Remove the fans:
1. Disconnect the left processor fan cable (1) from the system board.
2. Remove the three Phillips M2.0 × 4.0 screws (2) that secure the fan to the computer.
3. Remove the antenna cables from the clips (3) on the left side of the fan.
4. Remove the fan (4).
5. Disconnect the right graphics fan cable (1) from the system board.
Fans
51
