Layer3 source network:
IP address Prefix length
Destination authenticate subnet:
IP address Prefix length
A user can perform portal authentication by using the HPE iNode client or a Web browser. Before
passing the authentication, the user can access only the authentication page
http://192.168.0.111:8080/portal and all Web requests will be redirected to the authentication page.
After passing the authentication, the user can access Internet resources.
# After the user passes authentication, use the following command to display information about the
portal user.
[Switch] display portal user interface vlan-interface 100
Total portal users: 1
Username: abc
Portal server: newpt
State: Online
Authorization ACL: --
VPN instance: --
MAC IP VLAN Interface
0015-e9a6-7cfe 2.2.2.2 100 Vlan-interface100
Configuring re-DHCP portal authentication
Network requirements
As shown in Figure 53, the host is directly connected to the switch (the access device). The host
obtains an IP address through the DHCP server. A portal server acts as both a portal authentication
server and a portal Web server. A RADIUS server acts as the authentication/accounting server.
Configure re-DHCP portal authentication. Before passing the authentication, the host is assigned a
private IP address. After passing the authentication, the host gets a public IP address and can
access Internet resources.

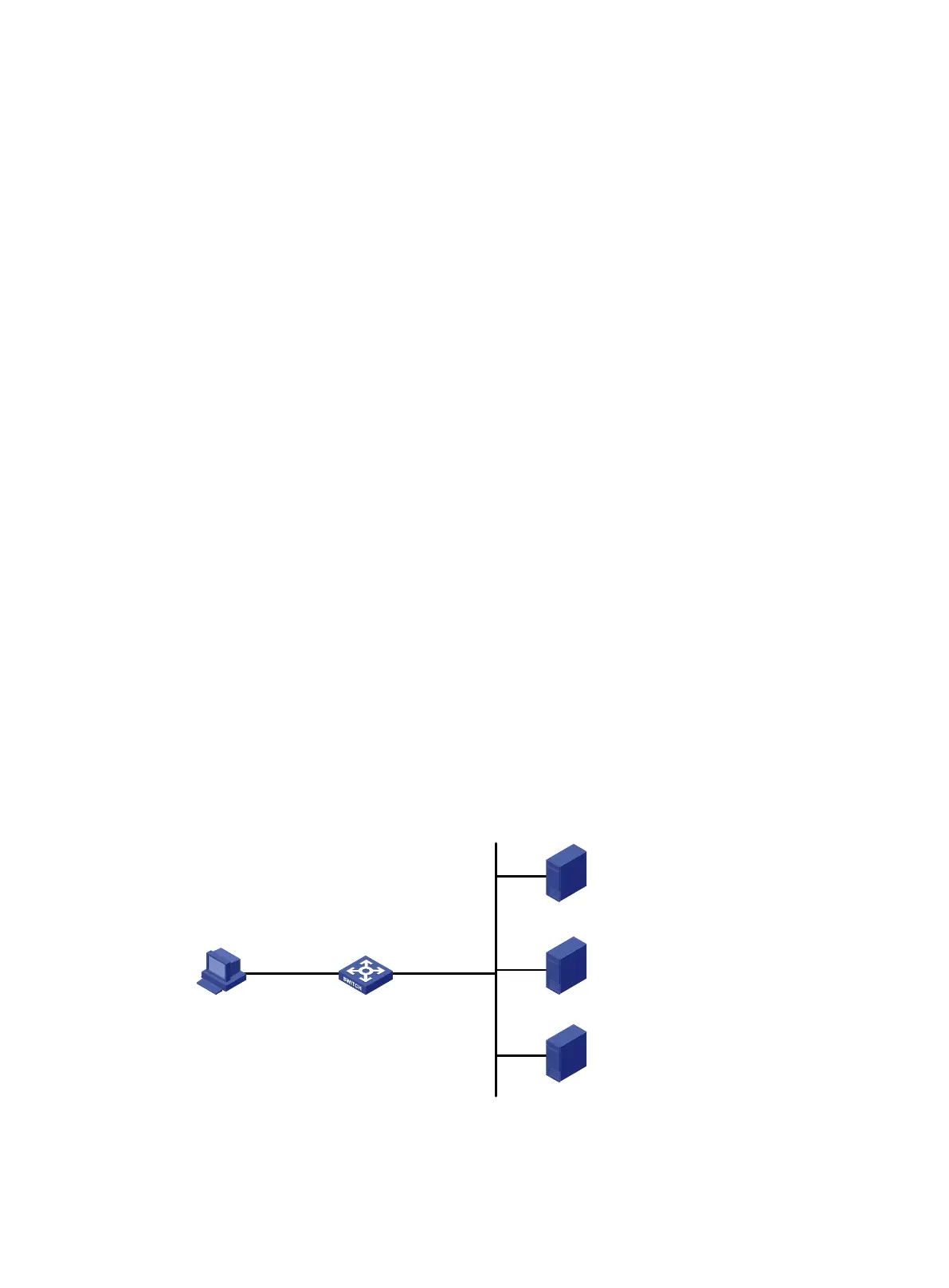

Figure 53 Network diagram
192.168
.0.111/24
192.168.0.113/24
192.168.0.112/24
Switch
Host
automatically obtains
an IP address
Vlan-int100
20.20.
20.1/24
10.0
.0.1/24 sub
Vlan-int2
192.168.0.100/24
Portal Server
RADIUS server
DHCP server
