# Display information about the online 802.1X user to verify 802.1X configuration.
[Device] display dot1x
# Verify that the port also allows one user whose MAC address has an OUI among the specified
OUIs to pass authentication.
[Device] display mac-address interface gigabitethernet 1/0/1
MAC Address VLAN ID State Port Aging
1234-0300-0011 1 Learned GigabitEthernet1/0/1 Y
macAddressElseUserLoginSecure configuration example
Network requirements
As shown in Figure 73, a client is connected to the device through GigabitEthernet 1/0/1. The device
authenticates the client by a RADIUS server. If the authentication succeeds, the client is authorized
to access the Internet.
Configure port GigabitEthernet 1/0/1 of the device to meet the following requirements:
• Allow more than one MAC authenticated user to log on.
• For 802.1X users, perform MAC authentication first and then, if MAC authentication fails,
802.1X authentication. Allow only one 802.1X user to log on.
• Use the MAC address of each user as the username and password for authentication. A MAC
address is in the hexadecimal notation with hyphens, and letters are in upper case.
• Set the total number of MAC authenticated users and 802.1X authenticated users to 64.
• Enable NTK (ntkonly mode) to prevent frames from being sent to unknown MAC addresses.

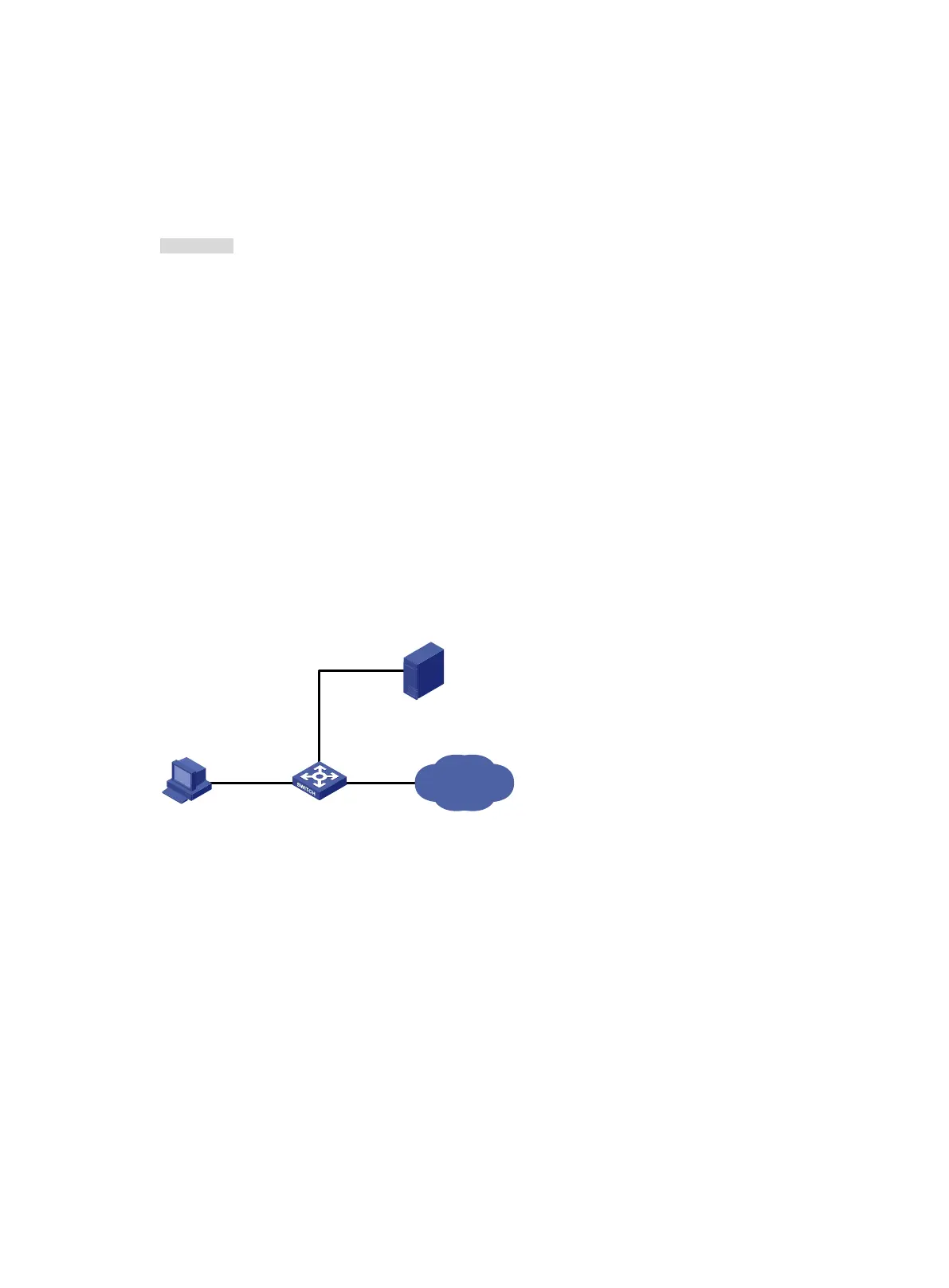

Figure 73 Network diagram
Configuration procedure
Make sure the host and the RADIUS server can reach each other.
1. Configure RADIUS authentication/accounting and ISP domain settings. (See
"userLoginWithOUI configuration example.")
2. Configure port security:
# Enable port security.
<Device> system-view
[Device] port-security enable
# Use MAC-based accounts for MAC authentication. Each MAC address must be in the
hexadecimal notation with hyphens, and letters are in upper case.
[Device] mac-authentication user-name-format mac-address with-hyphen uppercase
# Specify the MAC authentication domain.
[Device] mac-authentication domain sun
Internet
Device
Host
GE1/0/1
Authentication servers
(192.168.1.2/24
192.168.1.3/24)
