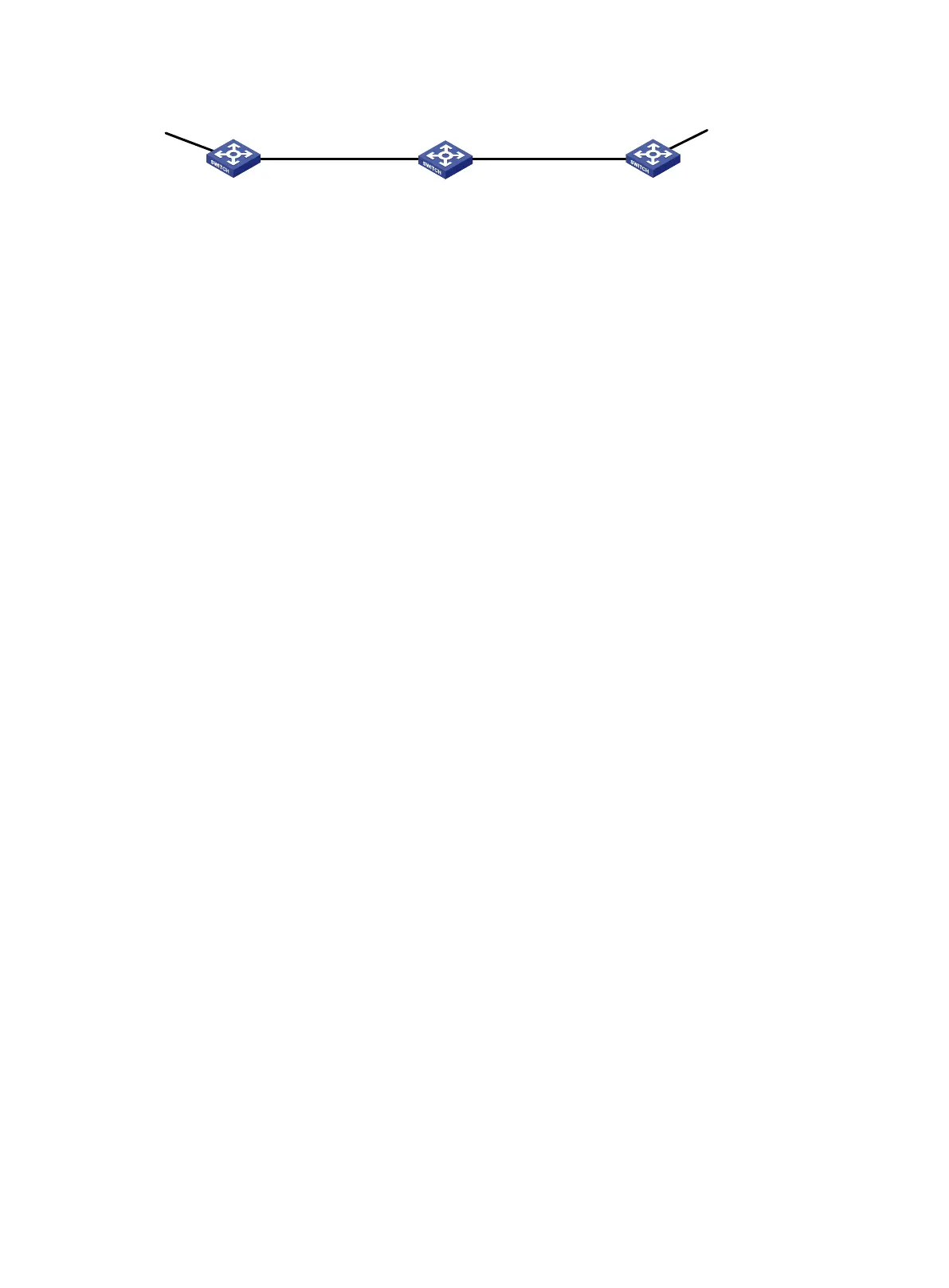

Figure 88 Network diagram
Requirements analysis
To meet the network requirements, perform the following tasks:
1. Configure basic RIPng.
For more information about RIPng configurations, see Layer 3—IP Routing Configuration
Guide.
2. Configure an IPsec profile.
 The IPsec profiles on all the switches must have IPsec transform sets that use the same
security protocol, authentication and encryption algorithms, and encapsulation mode.
 The SPI and key configured for the inbound SA and those for the outbound SA must be the
same on each switch.
 The SPI and key configured for the SAs on all the switches must be the same.
3. Apply the IPsec profile to a RIPng process or to an interface.
Configuration procedure
1. Configure Switch A:
# Configure IPv6 addresses for interfaces. (Details not shown.)
# Configure basic RIPng.
<SwitchA> system-view
[SwitchA] ripng 1
[SwitchA-ripng-1] quit
[SwitchA] interface vlan-interface 100
[SwitchA-Vlan-interface100] ripng 1 enable
[SwitchA-Vlan-interface100] quit
# Create and configure the IPsec transform set named tran1.
[SwitchA] ipsec transform-set tran1
[SwitchA-ipsec-transform-set-tran1] encapsulation-mode transport
[SwitchA-ipsec-transform-set-tran1] protocol esp
[SwitchA-ipsec-transform-set-tran1] esp encryption-algorithm aes-cbc-128
[SwitchA-ipsec-transform-set-tran1] esp authentication-algorithm sha1
[SwitchA-ipsec-transform-set-tran1] quit
# Create and configure the IPsec profile named profile001.
[SwitchA] ipsec profile profile001 manual
[SwitchA-ipsec-profile-profile1001] transform-set tran1
[SwitchA-ipsec-profile-profile1001] sa spi outbound esp 123456
[SwitchA-ipsec-profile-profile1001] sa spi inbound esp 123456
[SwitchA-ipsec-profile-profile1001] sa string-key outbound esp simple abcdefg
[SwitchA-ipsec-profile-profile1001] sa string-key inbound esp simple abcdefg
[SwitchA-ipsec-profile-profile1001] quit
# Apply the IPsec profile to RIPng process 1.
[SwitchA] ripng 1
[SwitchA-ripng-1] enable ipsec-profile profile001
[SwitchA-ripng-1] quit
Vlan
-
int100
1::1/64
Vlan-int200
3::1/64
Vlan-int100
1
::2
/64
Vlan-int200
3
::2
/
64
Switch A
Switch B
Switch C
