Installing the 8 NVMe Slim SAS riser option
The 8NVMe Slim SAS riser can be installed in the primary or secondary position.
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• The components included with the hardware option kit
• T-10 Torx screwdriver
Procedure
1. Power down the server.
2. Do one of the following:
• Disconnect each power cord from the power source.
• Disconnect each power cord from the server.
3. Do one of the following:
•
Extend the server from the rack.
• Remove the server from the rack.
4.
Remove the access panel.
5.
Using the labels on the cable, connect the cables to the riser.
6.
Do one of the following:

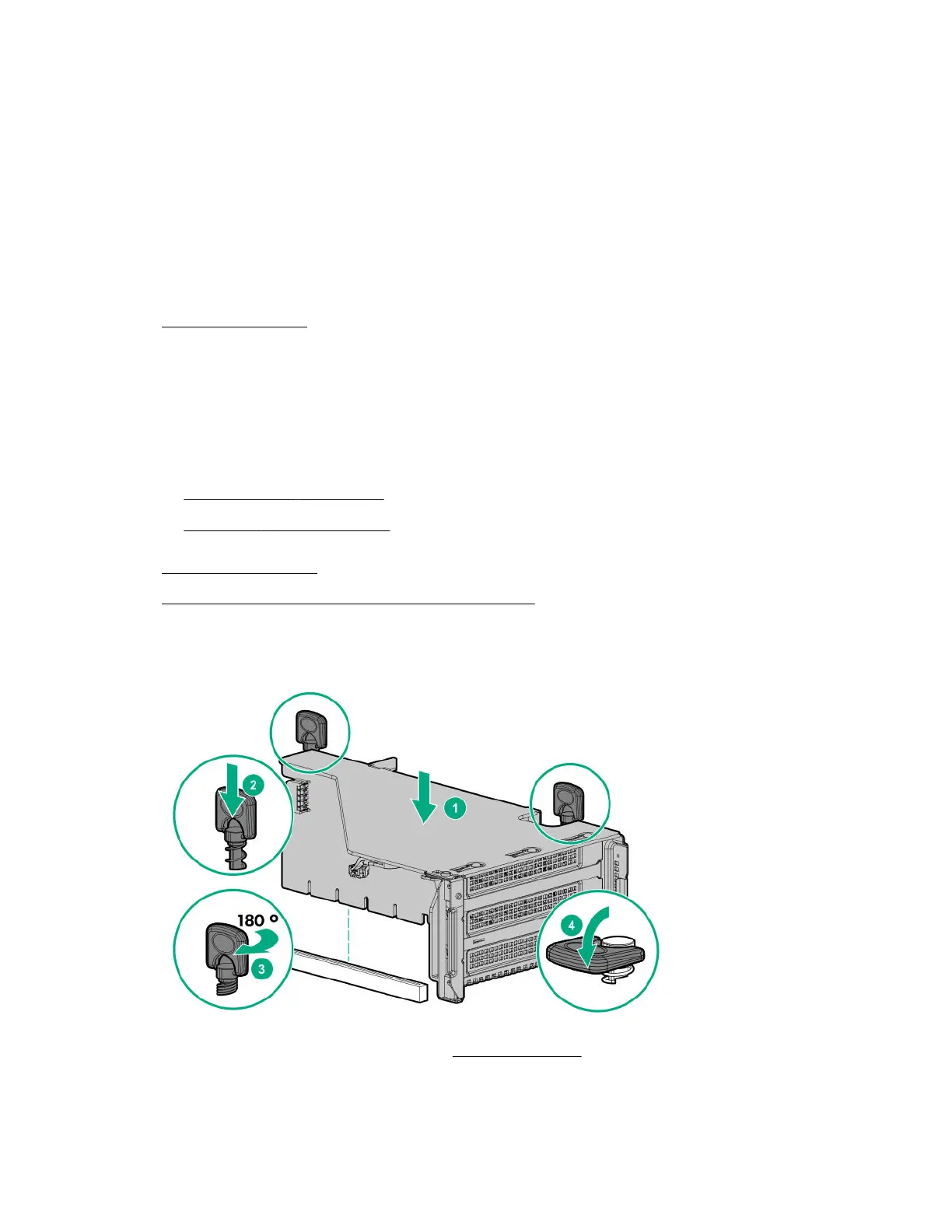

To install the riser in the primary position:
To install the riser in the secondary position, see secondary riser cage.
7. Connect data cables to the drive backplane.
