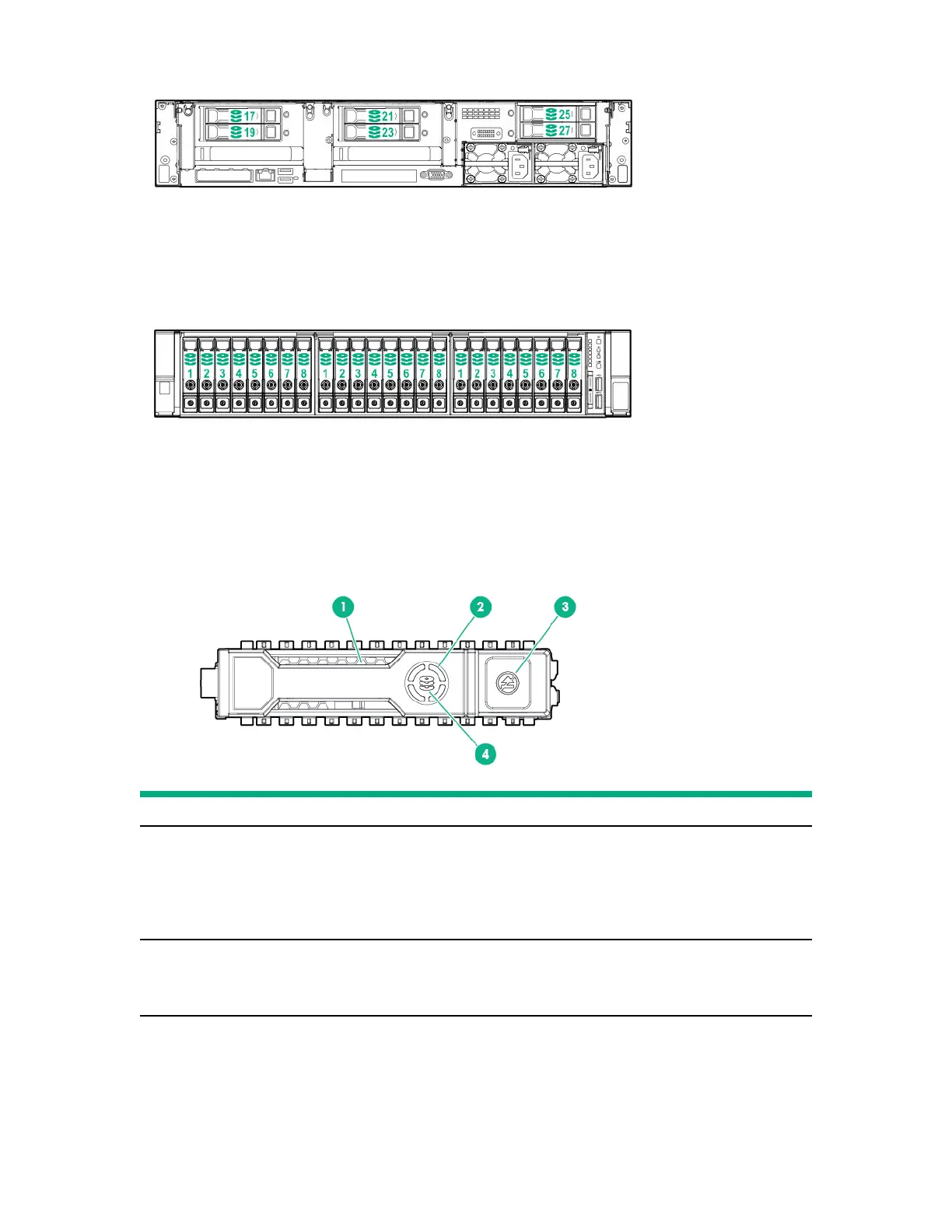

Front 12 LFF + Midplane 4 LFF + All rear 2 SFF
Drive bay numbering: NVMe drives
Server populated with NVMe drives and NVMe risers
Drives
SAS/SATA drive components and LEDs
Item
Description Status
1 Locate • Solid blue = The drive is being identified by a host
application.
• Flashing blue = The drive carrier firmware is being updated
or requires an update.
2 Activity ring LED • Rotating green = Drive activity.
• O = No drive activity.
Table Continued
Component identification 31
