11. Install drives or drive blanks.
12.

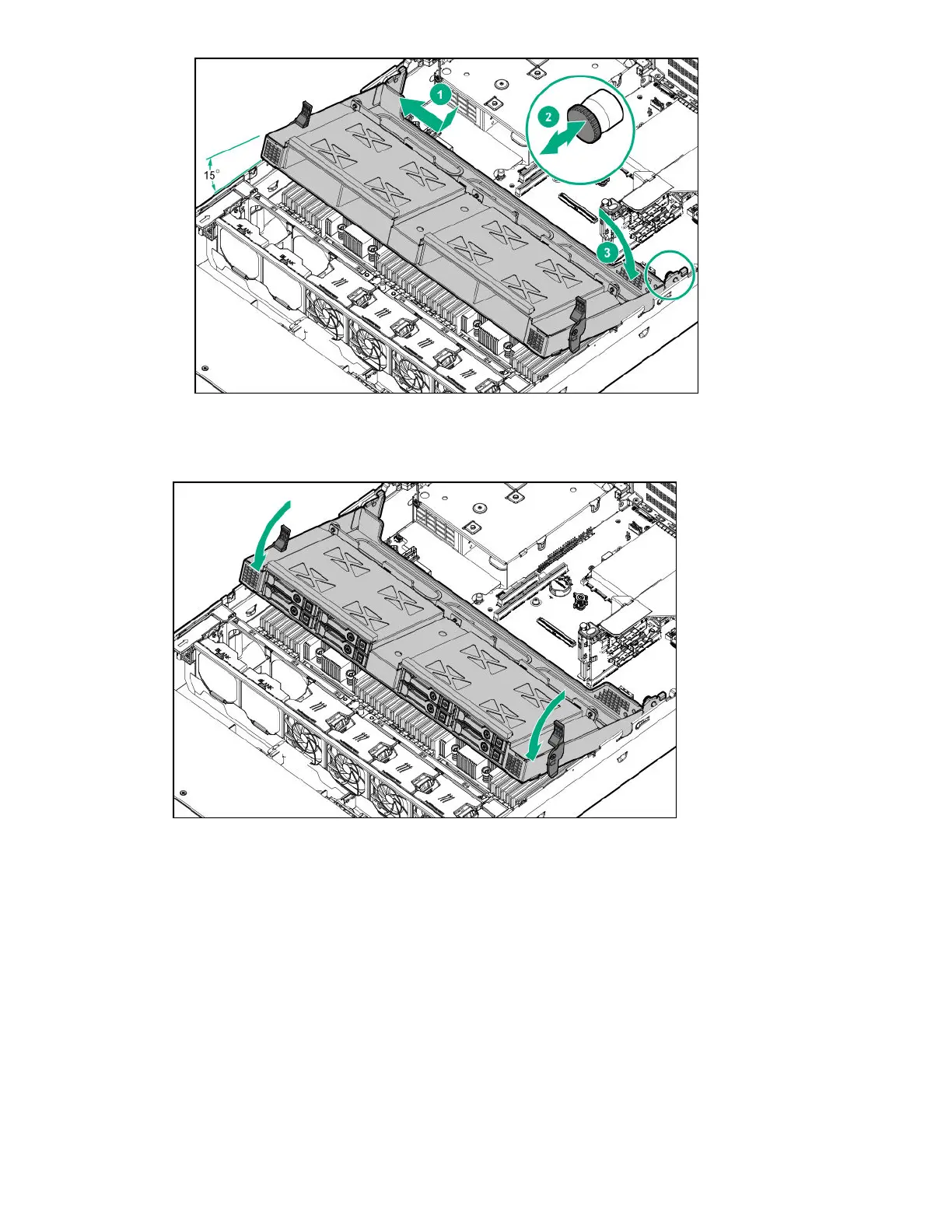

Push down on the latches to lower the drive cage into place.
13.
Connect the power and data cables to the drive backplane.
The installation is complete.
Installing a rear 2 SFF SAS/SATA drive cage over the power supplies
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• T-10 Torx screwdriver
• The components included with the hardware option kit
Hardware options installation
77
