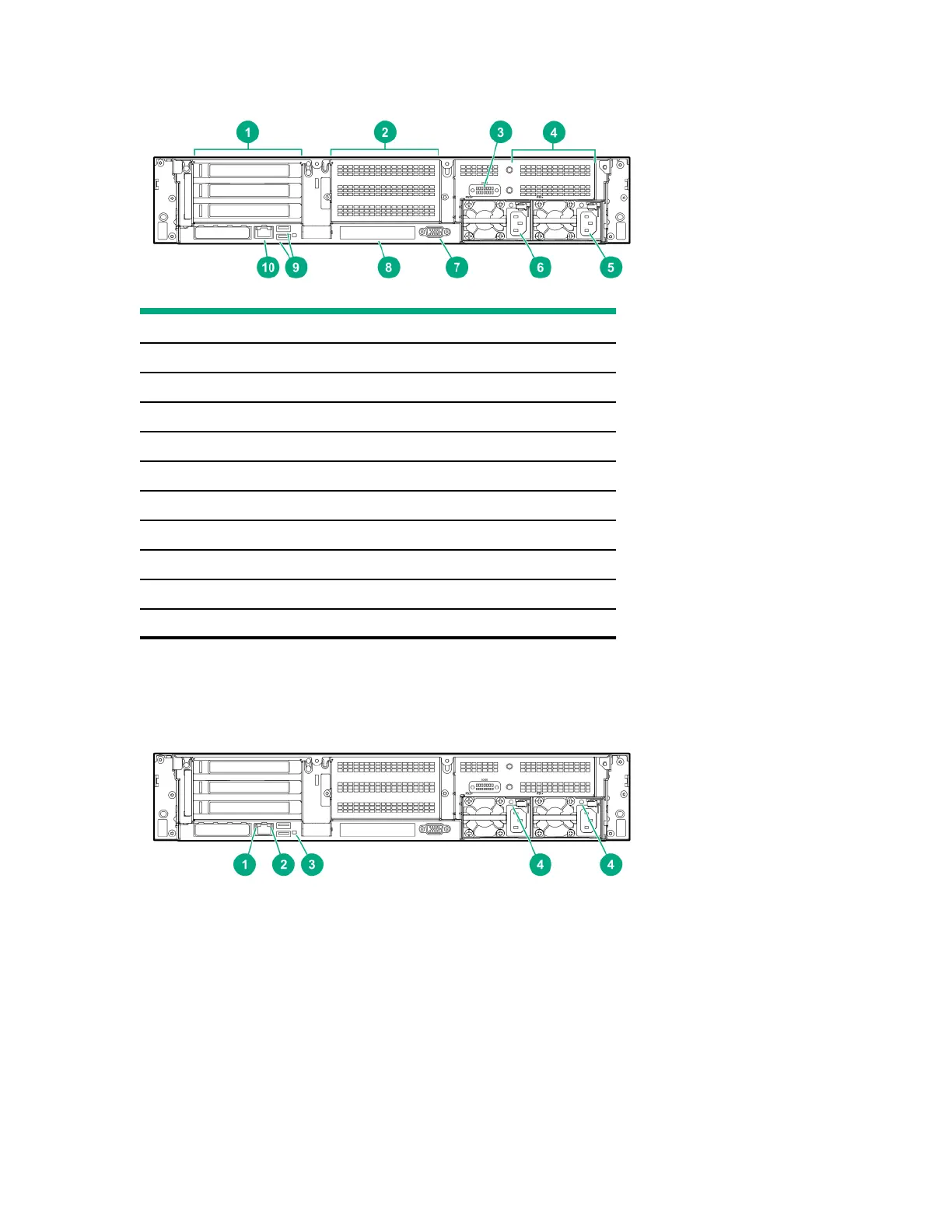

Rear panel components
Item Description
1 Primary riser slots 1–3 (optional drive cage)
2 Optional secondary riser slots 4–6 (optional drive cage)
3 Serial port (optional)
1
4 Optional tertiary riser slots 7–8 (optional drive cage)
5 Power supply 1
6 Power supply 2
7 Video port
8 OCP NIC 30 slot
9 USB 31 Gen1 connectors (2)
10 Dedicated iLO management port
1
When a secondary or tertiary riser cage is installed as shown, the serial port can be installed in the riser slot 8.
Rear panel LEDs
18
Component identification
