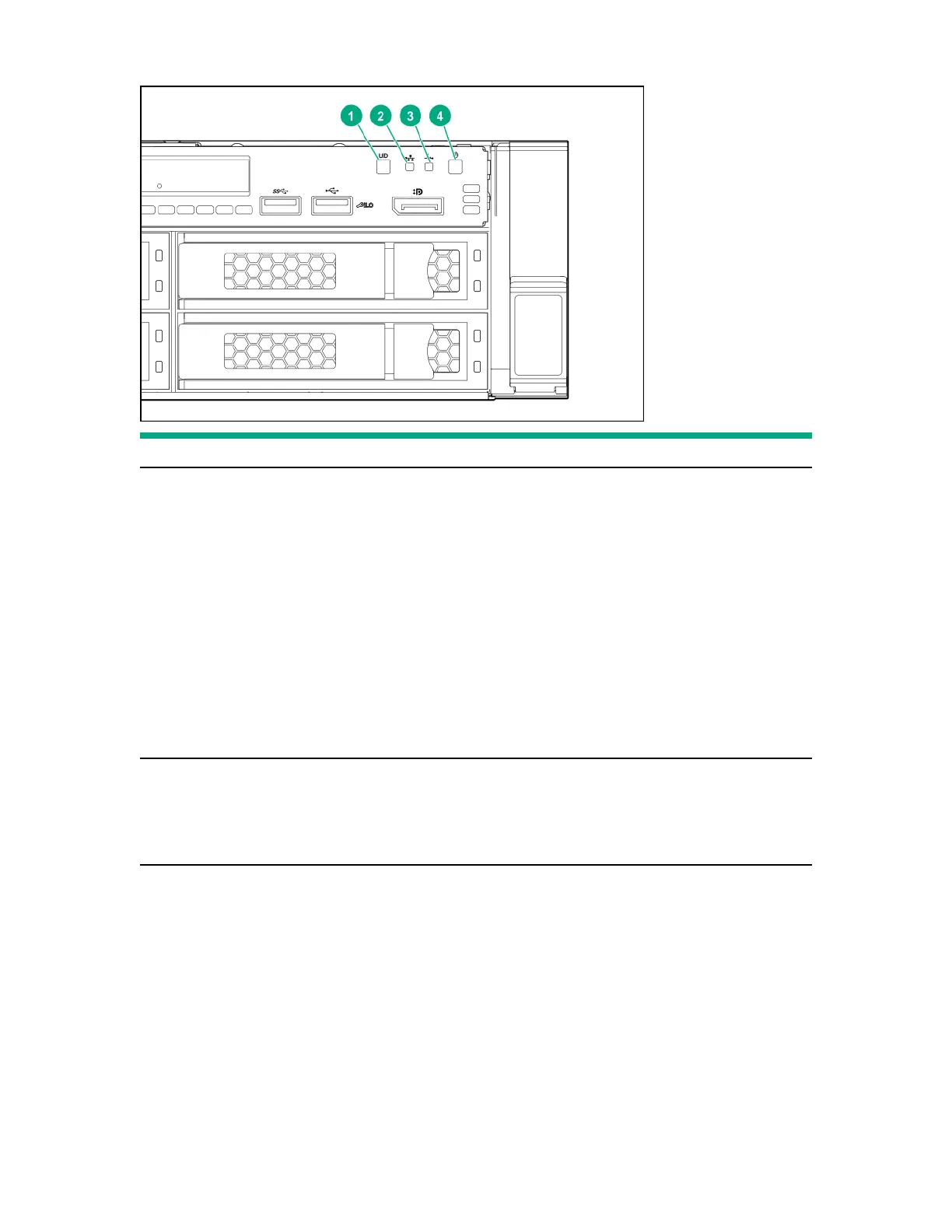

LFF power switch module LEDs and button
Item Description Status
1 UID button/LED
1
• Solid blue = Activated
• Flashing blue:
◦ 1 Hz/cycle per sec = Remote management or firmware
upgrade in progress
◦ 4 Hz/cycle per sec = iLO manual reboot sequence
initiated
◦
◦ 8 Hz/cycle per sec = iLO manual reboot sequence in
progress
• O = Deactivated
2
NIC status LED
1
• Solid green = Link to network
• Flashing green (1 Hz/cycle per sec) = Network active
• O = No network activity
Table Continued
Component identification 13
