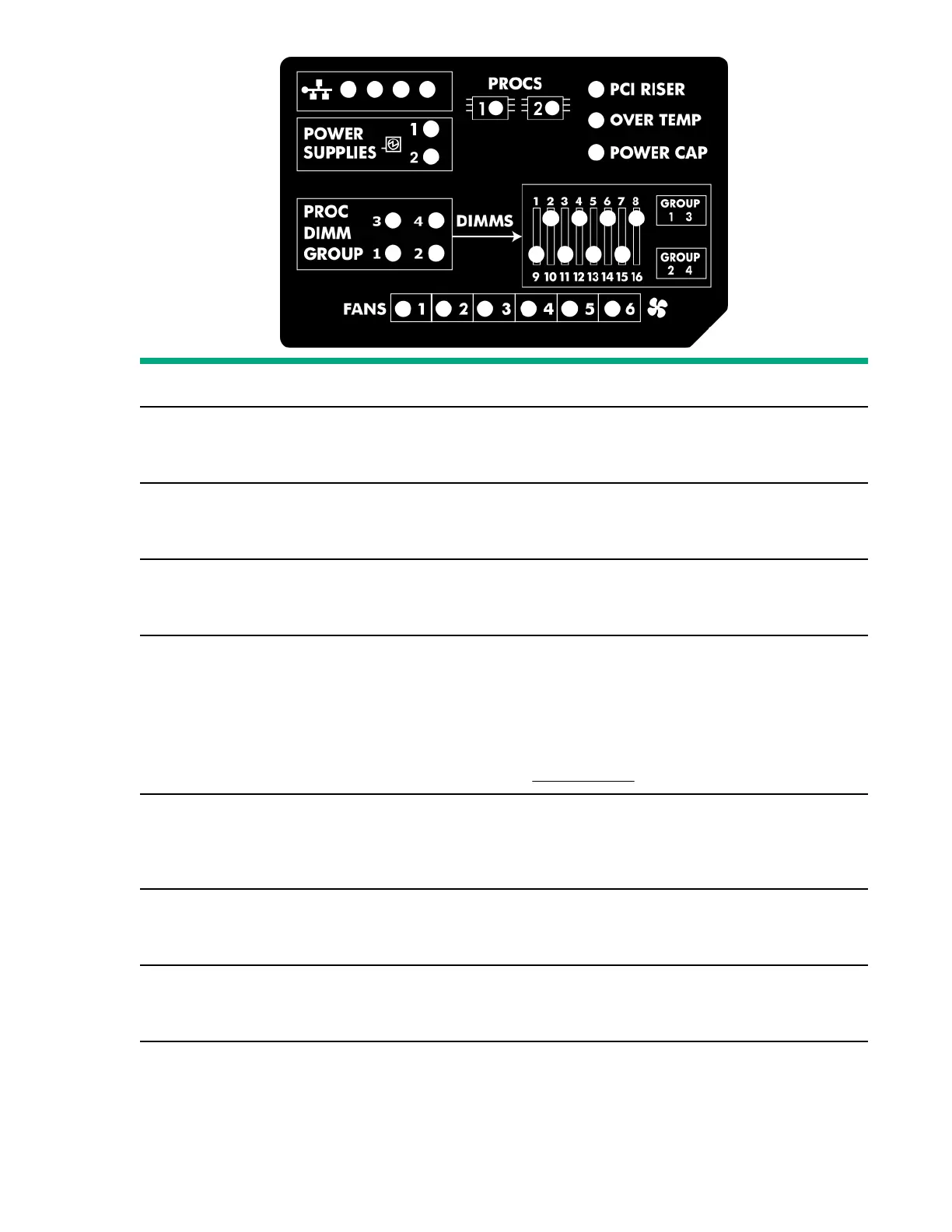

Description Status
Processor LEDs • O = Normal
• Amber = Failed processor
DIMM LEDs • O = Normal
• Amber = Failed DIMM or configuration issue
Fan LEDs • O = Normal
• Amber = Failed fan or missing fan
NIC LEDs
1
• O = No link to network
• Solid green = Network link
• Flashing green = Network link with activity
If power is o, the front panel LED is not active. For status,
see Rear panel LEDs.
Power supply LEDs • O = Normal
• Solid amber = Power subsystem degraded, power
supply failure, or input power lost
PCI riser LED • O = Normal
• Amber = Incorrectly installed PCI riser cage
Over temp LED • O = Normal
• Amber = High system temperature detected
Table Continued
