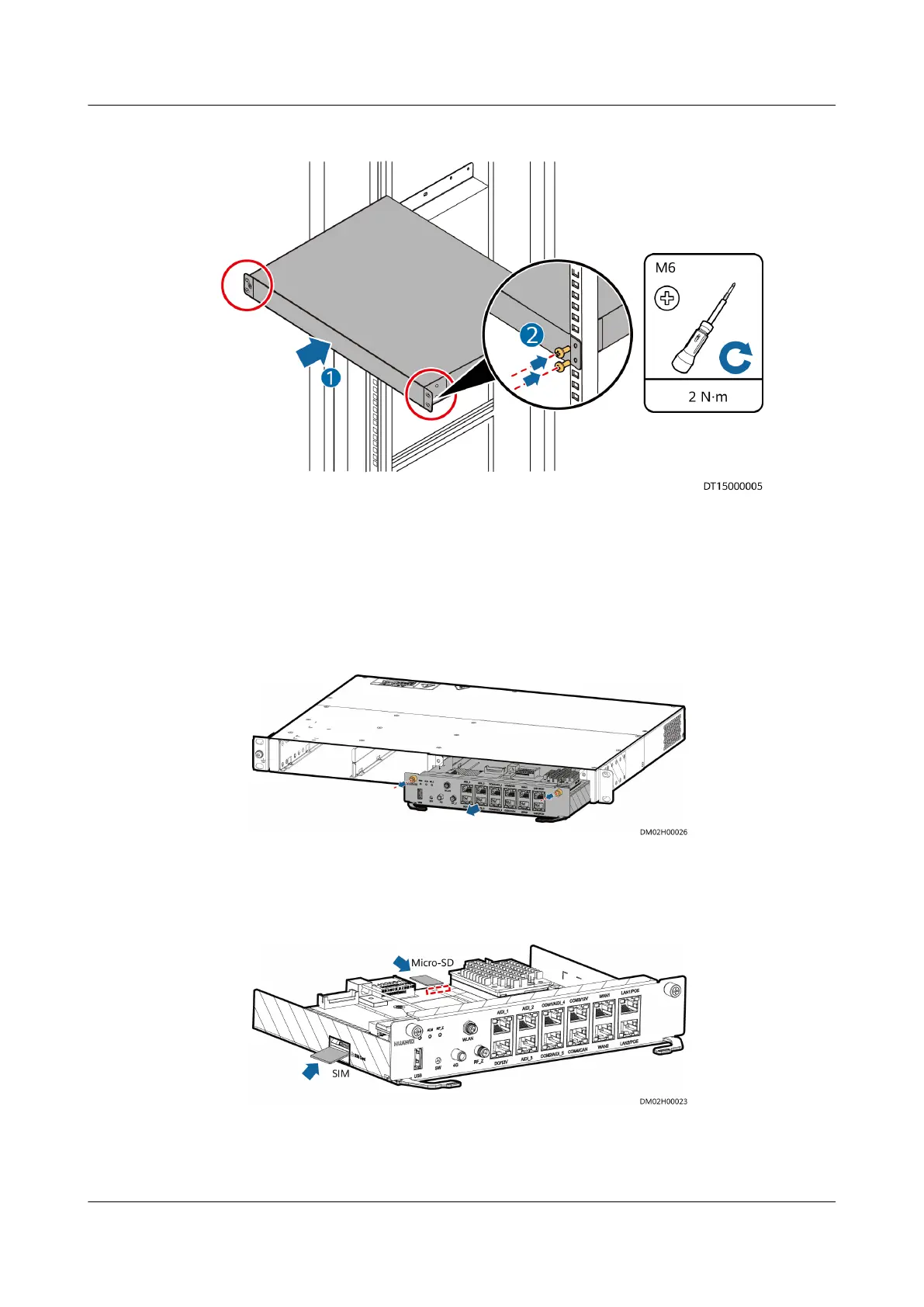

Figure 3-62 Installing an ECC800-Pro
Step 4 (Optional) Take out the ECC800-Pro main control module and install the MicroSD
and SIM cards in the correct slots of the main control module as required.
1. Loosen the captive screws on both sides of the ECC800-Pro main control
module, pull the handles on both sides of the main control module, and take
out the module.
Figure 3-63 Removing an ECC800-Pro main control module
2. Insert the MicroSD and SIM cards into the correct slots on the left side of the
ECC800-Pro main control module.
Figure 3-64 Installing the MicroSD card and SIM card
3. Reinstall the ECC800-Pro main control module in the ECC800-Pro subrack, and
tighten the captive screws on both sides of the module.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 89
