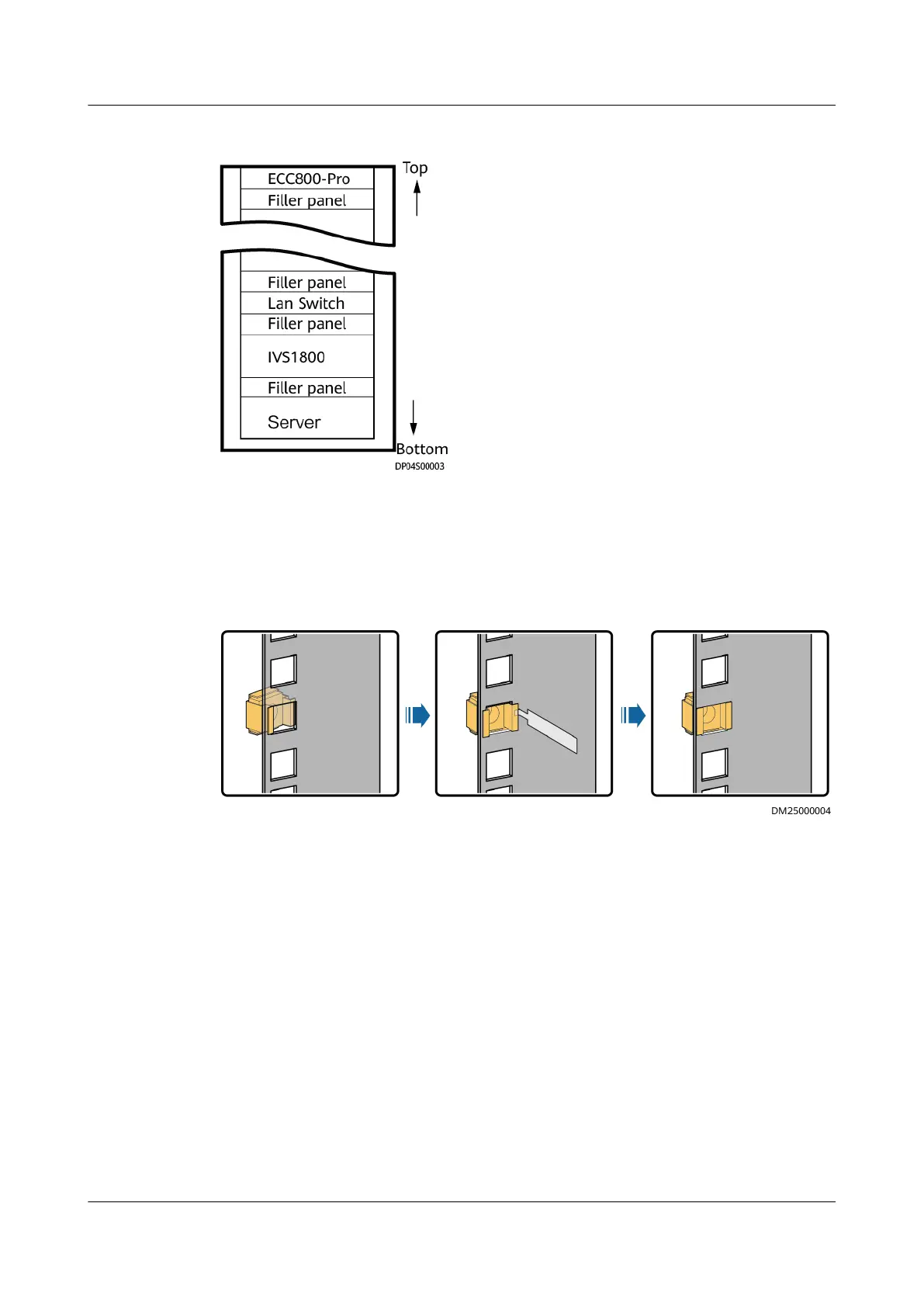

Figure 3-60 Equipment layout in the end IT cabinet
Procedure
Step 1 Determine the 42 U position for installing the ECC800-Pro in the end IT cabinet.
Adjust the guide rail installation position and install
oating nuts.
Figure 3-61 Installing a oating nut
Step 2 Place the ECC800-Pro in the IT cabinet with caution.
Step 3 Secure the ECC800-Pro in the IT cabinet by tightening the M6 screws on the
mounting ears.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 88
