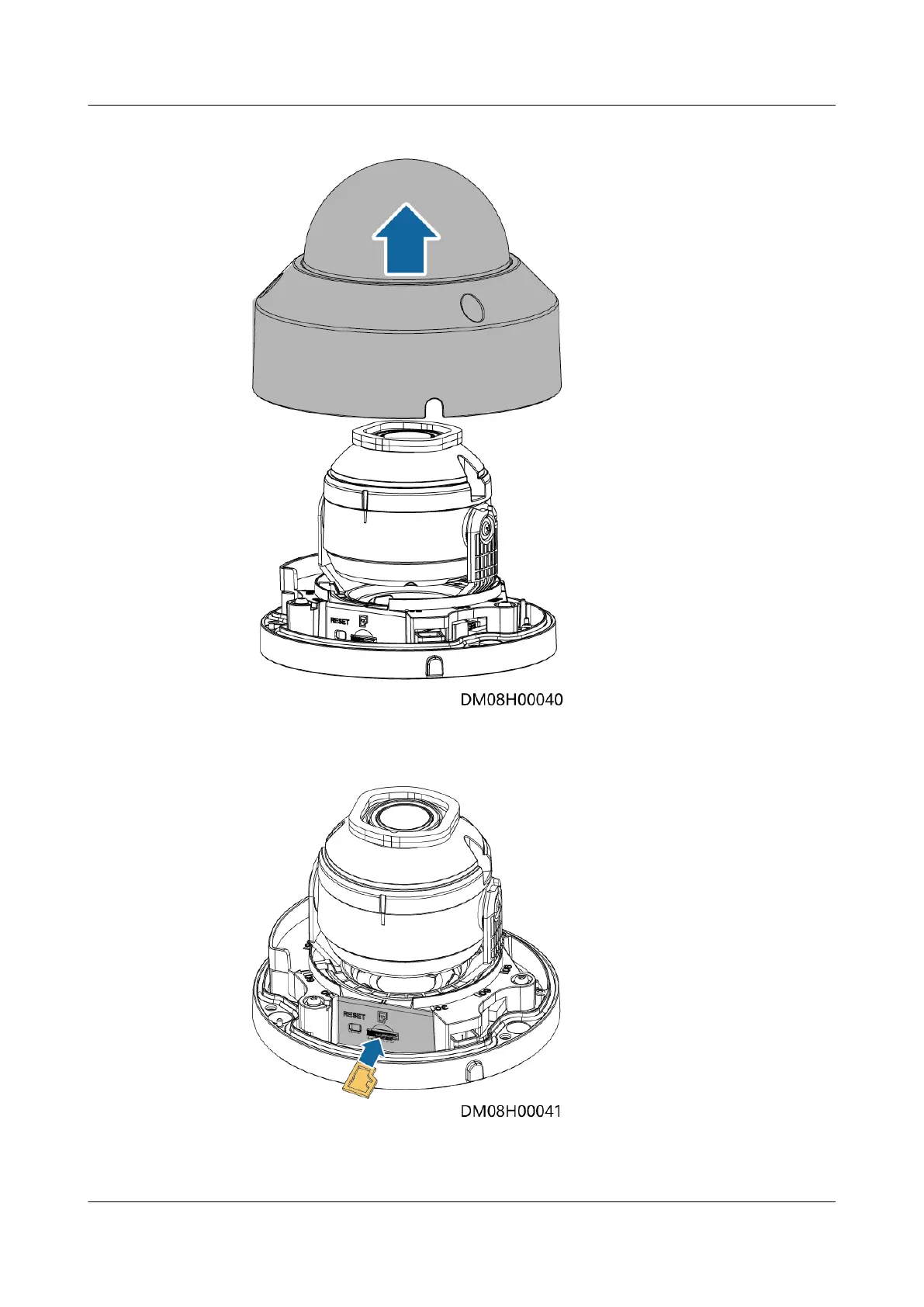

Figure 3-86 Removing the transparent cover
2. Gently insert the SD card into the SD card slot.
Figure 3-87 Installing an SD card
Step 2 Align the mounting holes in the camera base with those in the camera mounting
plate, and secure the camera to the mounting plate.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 101
