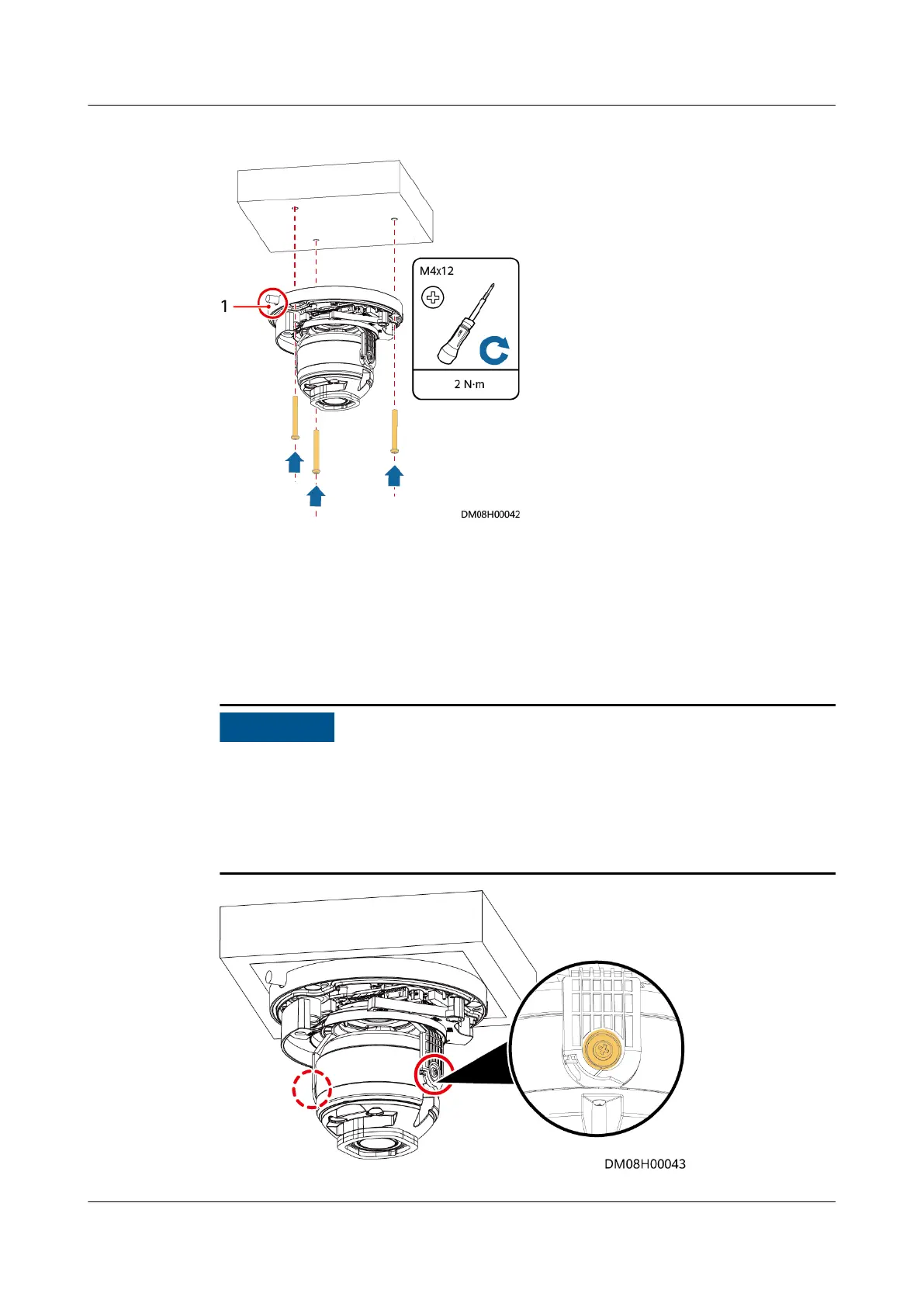

Figure 3-88 Installing a camera base
(1) Cable outlet
Step 3 Use a Phillips screwdriver to loosen the screws on both sides of the lens, adjust the
surveillance angle, and tighten the screws to 0.6 N·m.
Figure 3-89 Adjusting the camera
● By default, the camera is horizontally installed, and the surveillance video is
displayed horizontally. During the installation, adjust the surveillance angle to
avoid video image rotation after the installation.
● When adjusting the surveillance angle, pay attention to the position of the
illuminator to prevent the illuminator from being blocked.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 102
