The camera features a three-axis design. The camera can be adjusted by –175° to +180°
horizontally, and the lens can rotate –175° to +180° and be adjusted by 0° to 65° vertically.
Step 4 Align the transparent cover with the screw holes on the base, close the
transparent cover, and use a Phillips screwdriver to tighten the screws to 0.8 N·m.

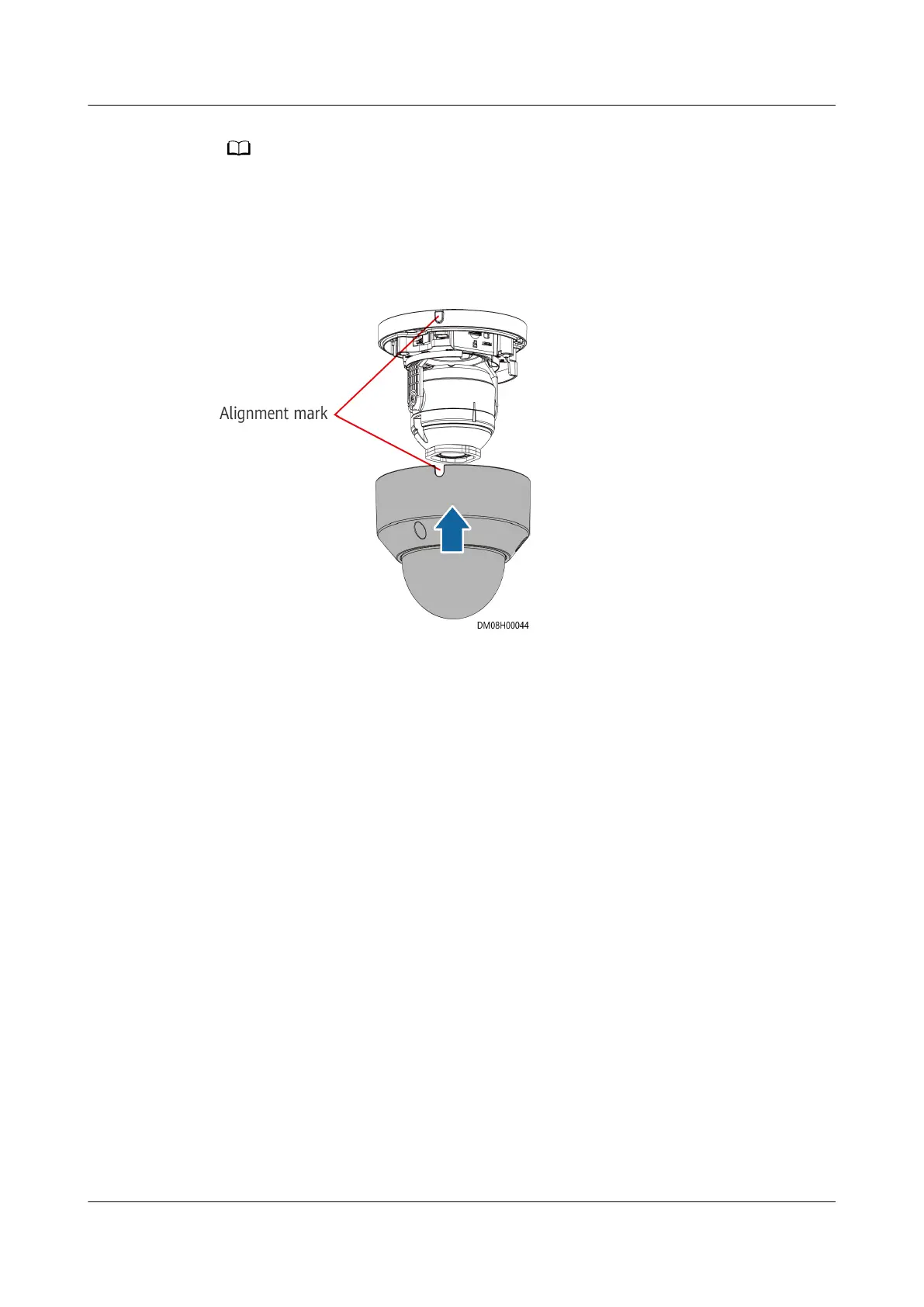

Figure 3-90 Installing the transparent cover
Step 5 Install the mounting plate with the camera on the top of the front door of the end
cabinet.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 103
