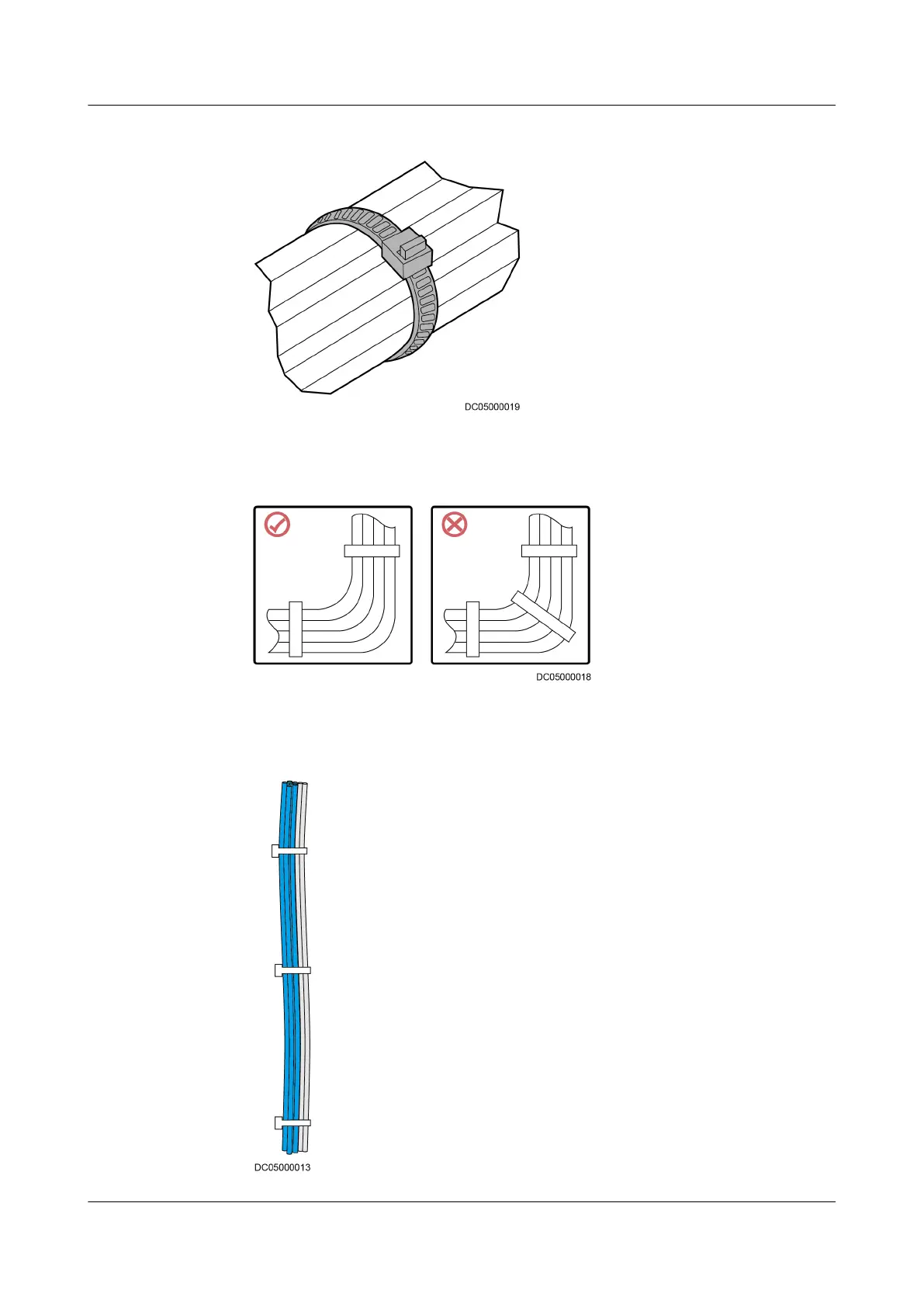

Figure 4-6 Cutting o the excess part of a cable tie
3. Do not use cable ties at a place where the cables are bent. Otherwise, the
cable cores may break due to strong stress, as shown in Figure 4-7.
Figure 4-7 Binding cables in a bending area
4. Ensure that the cable ties are wrapped and secured in the same direction and
do not interfere with subsequent operations, as shown in Figure 4-8.
Figure 4-8 Direction for securing cable ties
FusionModule2000-S Smart Modular Data Center
User Manual 4 System Cabling
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 123
