even-numbered cabinet, and the other end of the cable is connected to the
COM3 port on the ECC800-Pro.
● The smart module view has been set.
● The cabinet door can be opened and closed properly. If the cabinet door
cannot be opened and closed properly, adjust the position of the cabinet
electronic clasp lock by performing Steps 1 and 2.
Procedure
Step 1 (Optional) Check whether the cabinet door lock is leveled to 2000 (+3) mm. If
not, adjust it.
Step 2 (Optional) If the cabinet door still cannot be opened after Step 1 is performed,
adjust the position of the cabinet electronic clasp lock by using the slotted holes
until the cabinet door can be opened and closed properly.
Step 3 Set device addresses for cabinet electronic clasp locks. Set a device address for a
cabinet electronic clasp lock by operating the DIP switch on the lock. DIP switches
1 to 6 specify the device address in binary mode. ON indicates 1, and OFF
indicates 0.

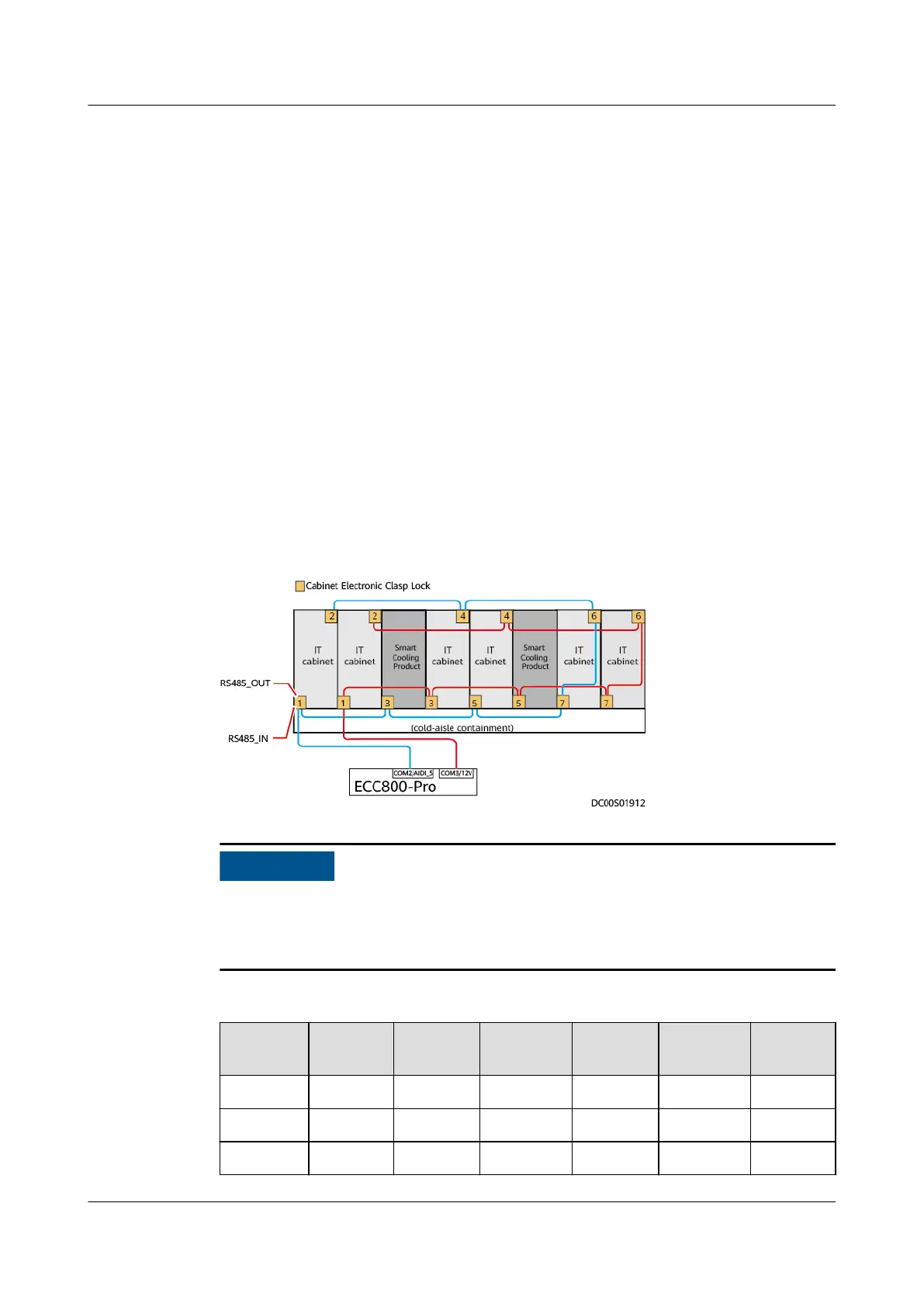

Figure 5-45 DIP switch addresses of the cabinet electronic locks
● The number indicates the DIP switch setting of the electronic clasp lock.
● The RS485_R DIP switches of the electronic clasp locks must be set to ON for
cabinets at the ends.
Table 5-27 Setting a device address
Address
DIP
Switch 1
DIP
Switch 2
DIP
Switch 3
DIP
Switch 4
DIP
Switch 5
DIP
Switch 6
1 ON OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF
3 ON ON OFF OFF OFF OFF
FusionModule2000-S Smart Modular Data Center
User Manual 5 Power-On Commissioning
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 203
