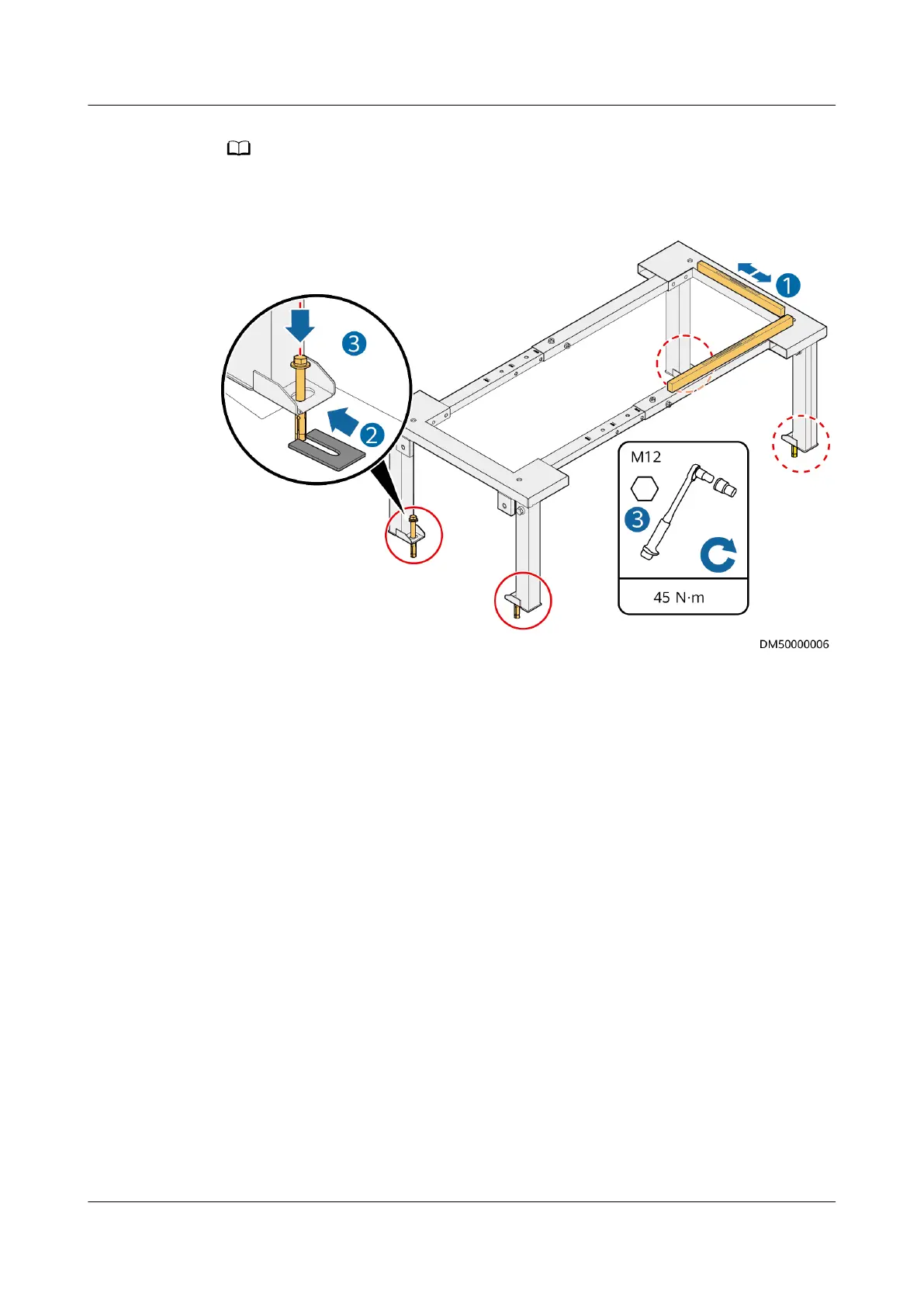

If a base is not level, put washers under it, as shown by (2) in the following gure.
Figure 3-11 Leveling a base
Step 10 Tighten the expansion bolts, as shown by (3) in the preceding gure.
Step 11 Secure other bases in the same way.
Step 12 Connect bases using connecting plates, as shown by (1) in the following gure.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 46
