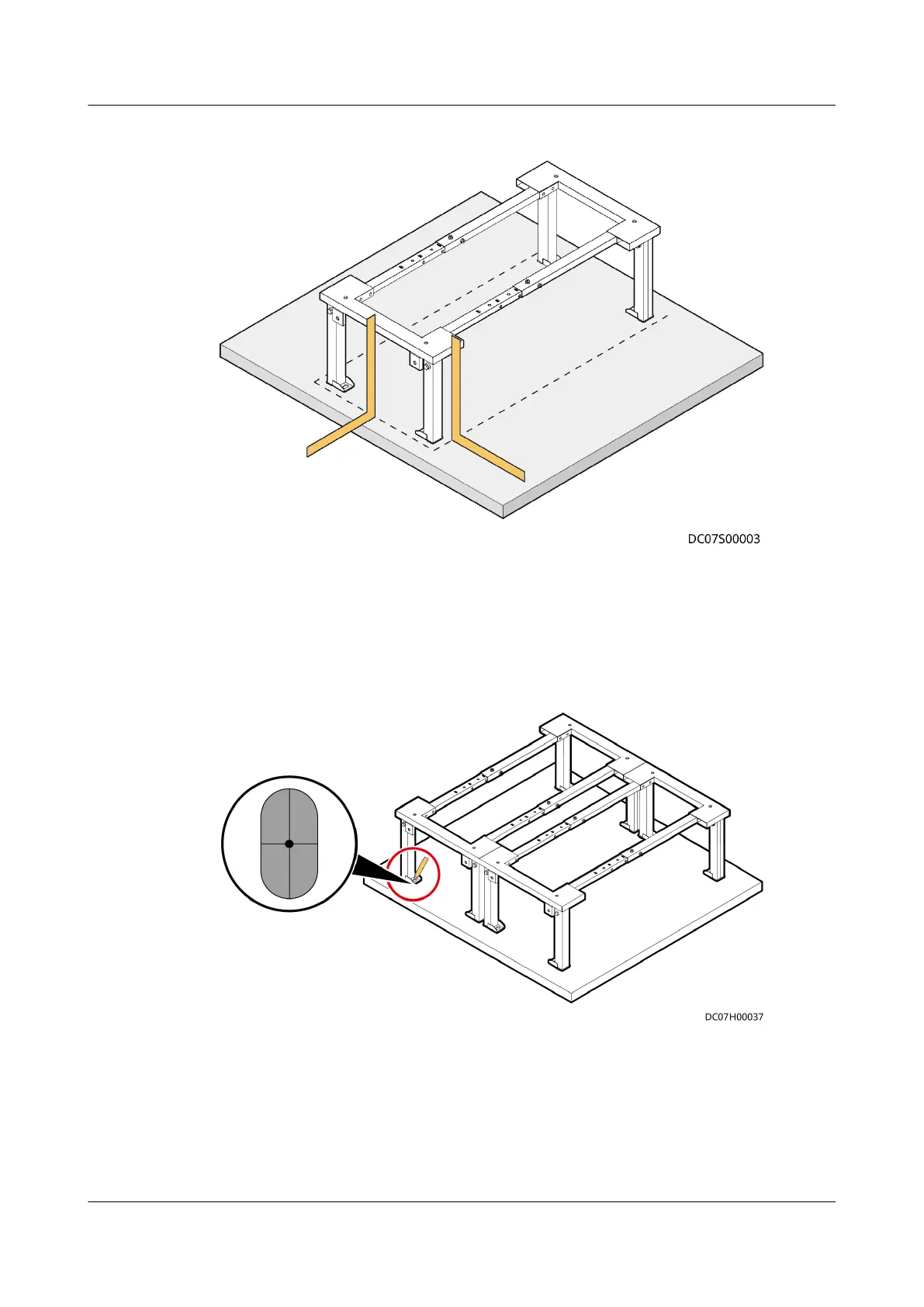

Figure 3-9 Positioning the rst base
Step 4 Use the end cabinet base as the reference to place other cabinet bases.
Step 5 Check that the installation position meets the requirements.
Step 6 Use a marker to mark hole positions.
Figure 3-10 Positioning
Step 7 Remove the base, drill 52 mm to 60 mm deep holes in the installation positions
using a hammer drill with a φ16 drill bit, and install expansion sleeves.
Step 8 Move the base back, install and partially tighten the expansion bolts.
Step 9 Measure the levelness of the base using a level, as shown by (1) in the following
gure.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 45
