2. Tighten the bolt assemblies on the telescopic rod.

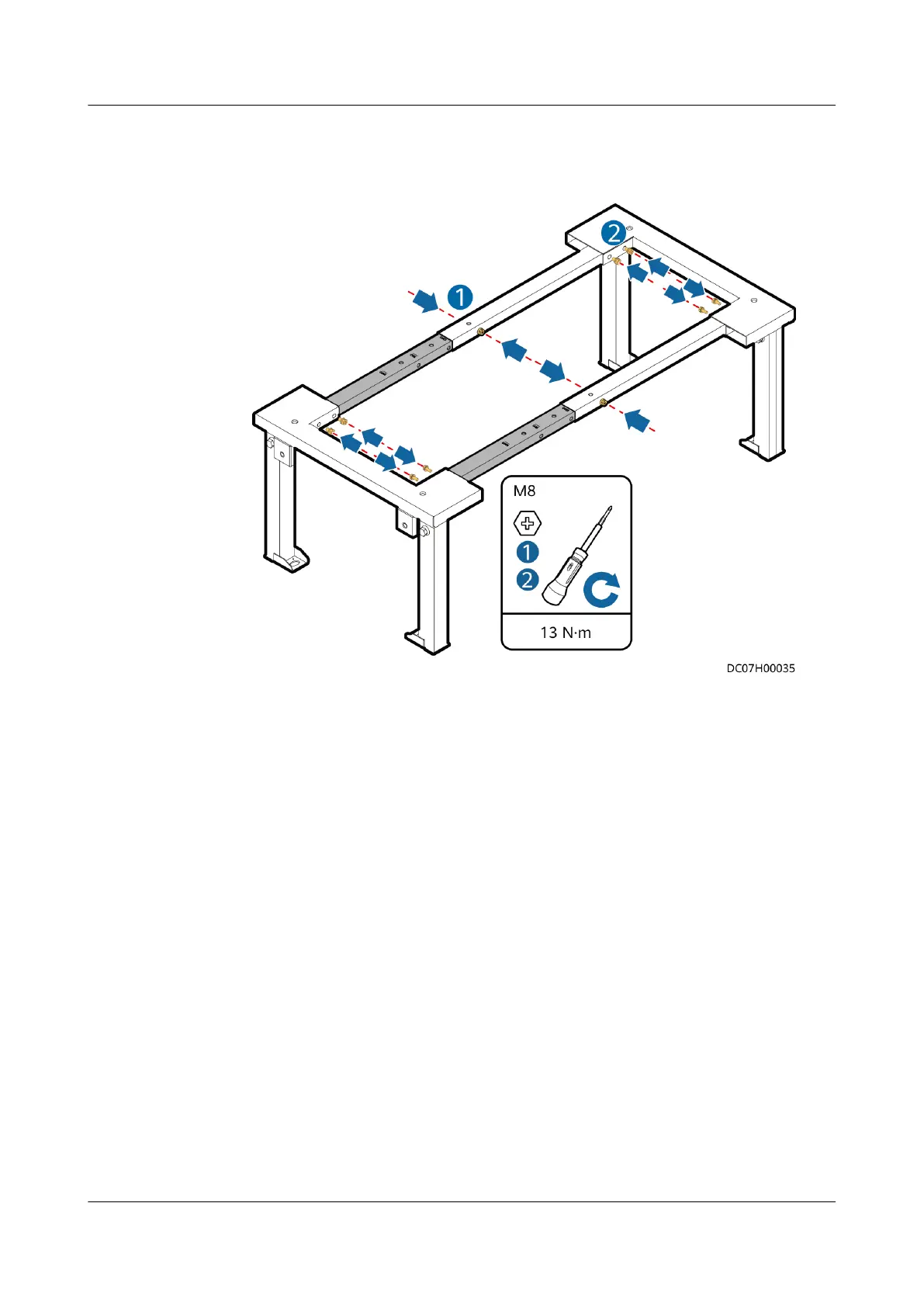

Figure 3-8 Assembling a base
3. Assemble the telescopic rod and the base, and then tighten the bolt
assemblies.
Step 3 Use a square to position the end cabinet base, and ensure that the outline of the
upper surface of the base aligns with the cabinet bottom outline on the
oor.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 44
