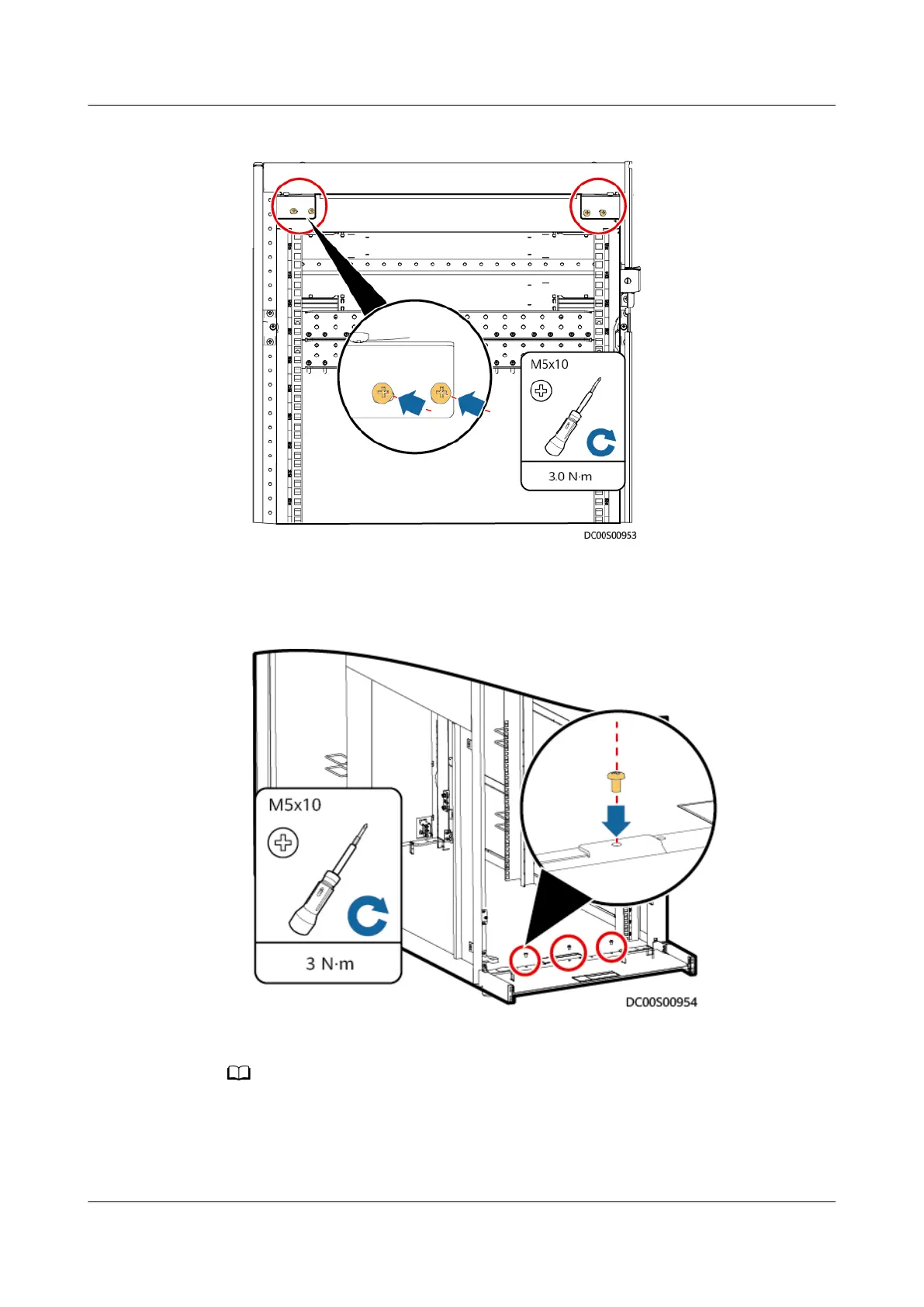

Figure 3-33 Securing holes on the cabinet top
2. Use three M5x10 tapping screws to secure the glass aisle door to the bottom
of the cabinet.
Figure 3-34 Securing the glass aisle door to the bottom of the cabinet
Step 5 Install cabinet side sealing plates.
Side sealing plates need to be installed only for the front doors of the cabinets at the end
and head of a row.
1. Secure the side sealing plate to the aisle door frame.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 65
