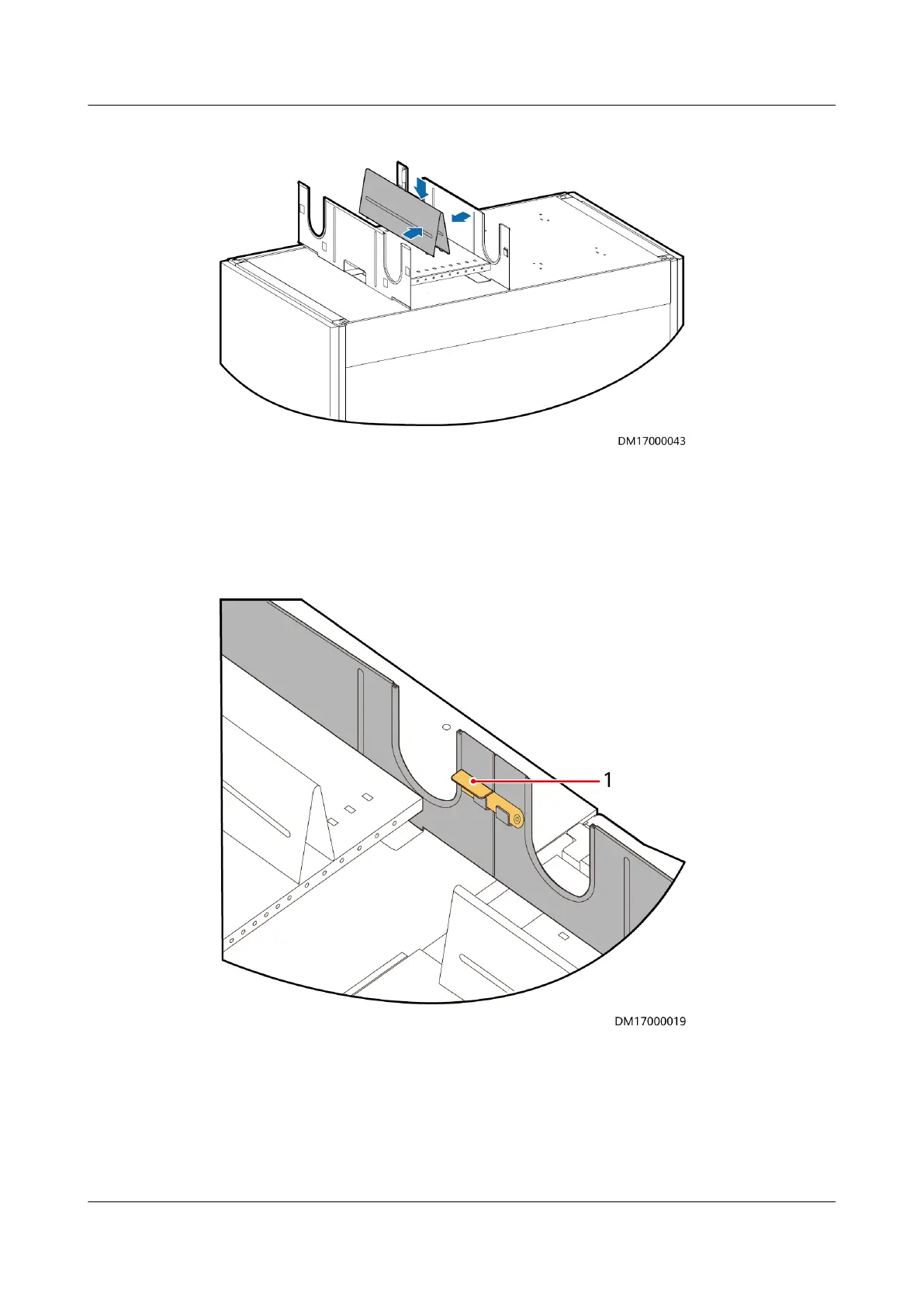

Figure 3-45 Installing a partition plate
Step 6 Install adjacent cable troughs in the same way.
Step 7 Rotate the interconnecting lever and clamp it into the clasps until the lever is
horizontal. This operation interconnects the cable troughs.
Figure 3-46 Installing an interconnecting lever
(1) Interconnecting lever
Step 8
Install the cable trough above the rear door in the same way.
----End
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 74
