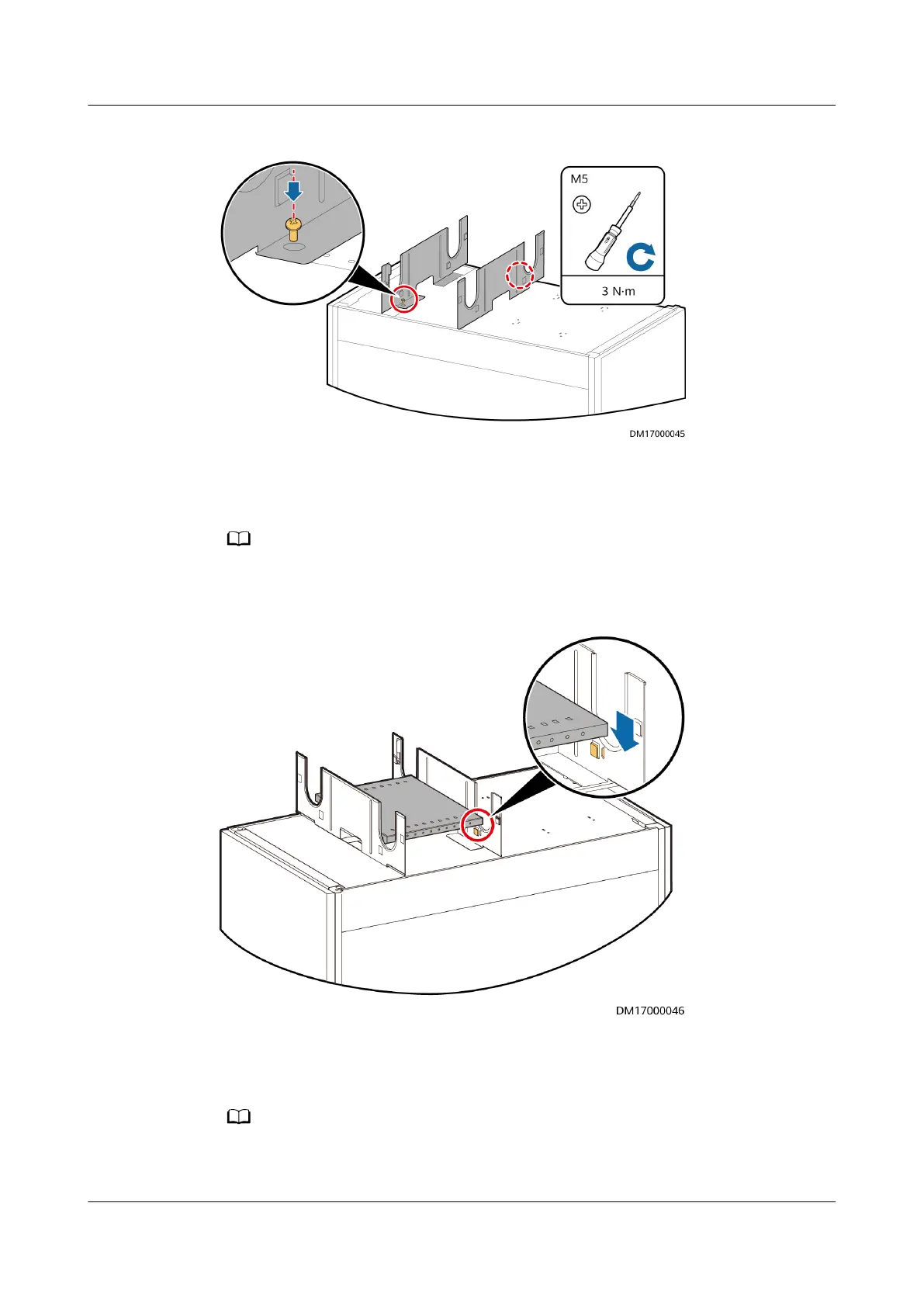

Figure 3-43 Installing the other vertical plate
Step 4 Press a supporting plate along the two vertical plates down to the place between
the four clasps and the cable bridge. Ensure that the supporting plate is fully into
the clasps.
When installing the supporting plate, do not remove the grommet strip on the U-shaped trough.
Figure 3-44 Installing a supporting plate
Step 5 Install a partition plate. Press both sides of the V-shaped partition plate with both
hands to decrease the angle to a proper degree, and clamp the clasps at the
bottom into the nearby holes.
By default, clamp the clasps into the two holes in the middle. In actual conditions, you can
select holes as required.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 73
