Preparations
Tool: Phillips screwdriver
Materials: PAD mounting support, PAD
Procedure
Step 1 (Optional) If the feet in the lower part of the PAD mounting support are not as
wide as the PAD, adjust the feet, as shown in Figure 3-57.
1. Loosen the M4x12 screws on the feet (do not remove the screws), as shown
by (1) in Figure 3-57.
2. Adjust the feet symmetrically until they are as wide as the PAD, as shown by
(2) in Figure 3-57.
3. Tighten the M4x12 screws on the feet, as shown by (3) in Figure 3-57.

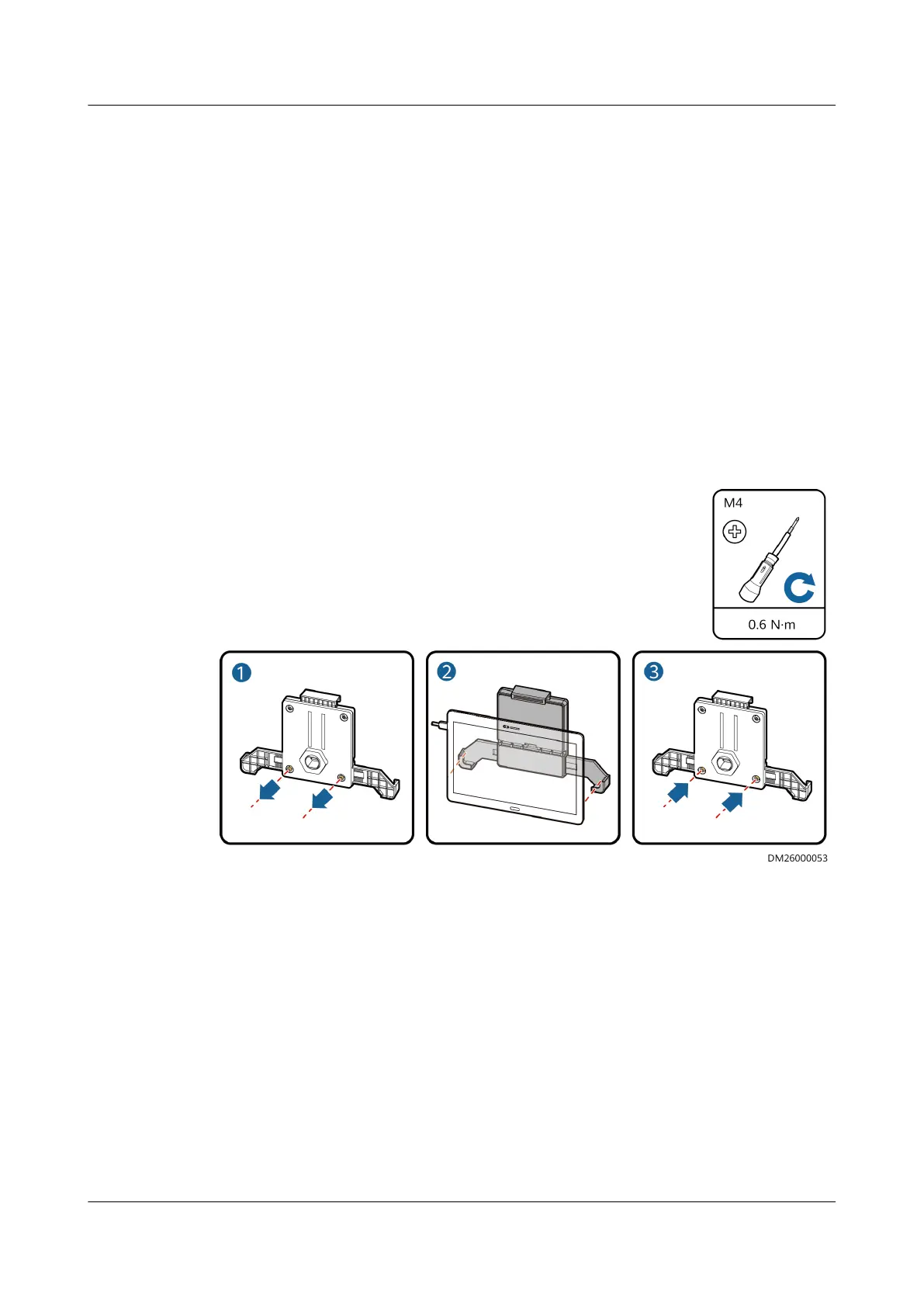

Figure 3-57 Adjusting feet
Step 2 Remove the cable hole bae plate from the PAD mounting kit, as shown by (1) in
Figure 3-58.
Step 3 Remove the nut from the PAD mounting support and secure the support to the
PAD mounting kit using the nut, as shown by (2) in Figure 3-58.
Step 4 Route the PAD power cable through the cable hole in the PAD mounting support
and then connect the cable to the PAD, as shown by (3) in Figure 3-58.
Step 5 Adjust the feet on the top of the PAD mounting support and clamp the PAD to the
PAD mounting support, as shown by (4) in Figure 3-58.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 85
