Figure 4-32 Connecting a drainpipe
Step 2 Route the drainpipe from the bottom.
● The smart cooling product tting bag contains drainpipe connectors. Use hoses
or rigid pipes based on the site requirements.
● The drainpipe inside the indoor unit must be wrapped with the thermal
insulation tubing in
ttings.
1. Remove the bae plate from the water pipe hole at the bottom of the
cabinet.

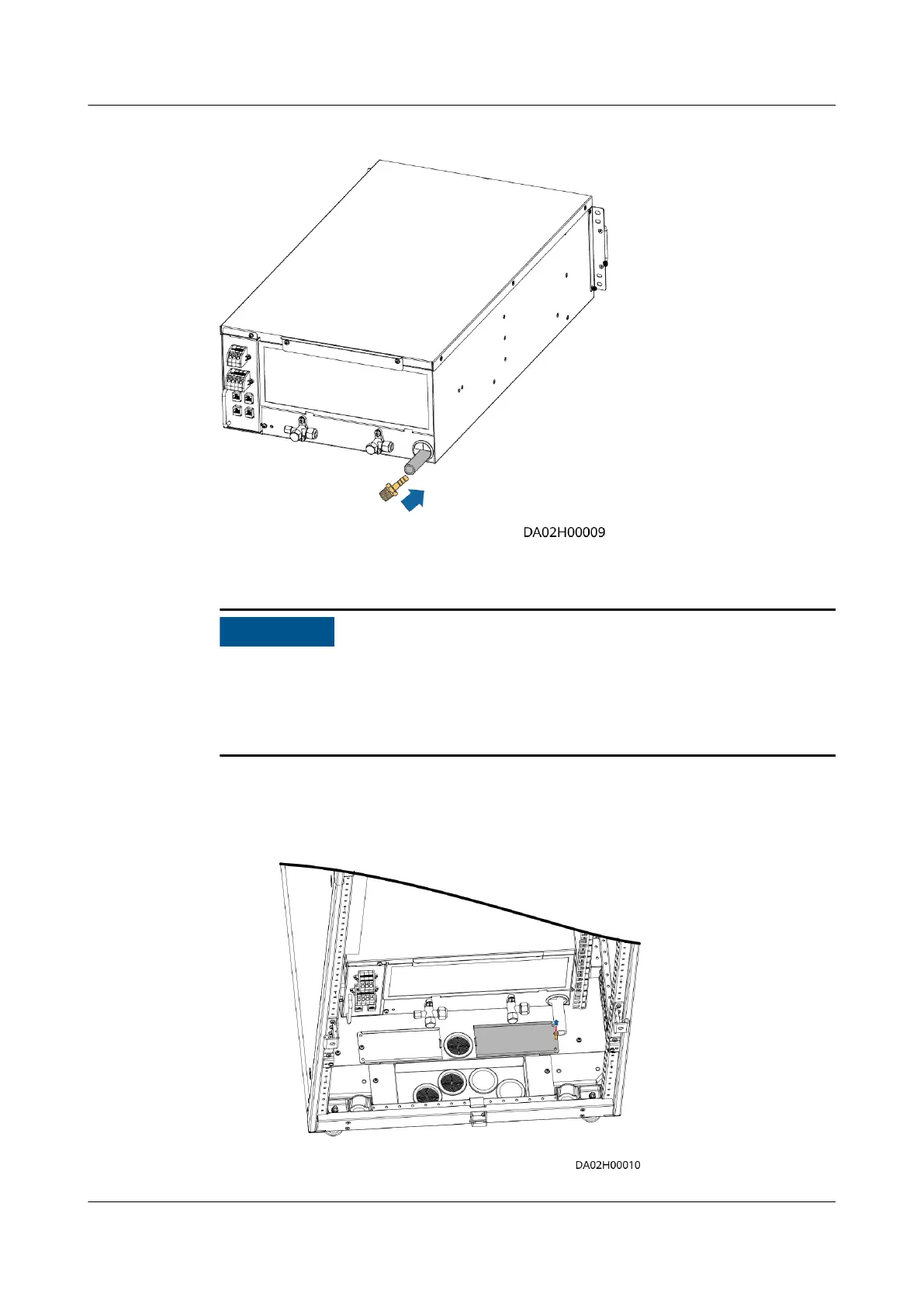

Figure 4-33 Removing the bae plate from the bottom of the cabinet
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 92
To Next Page
