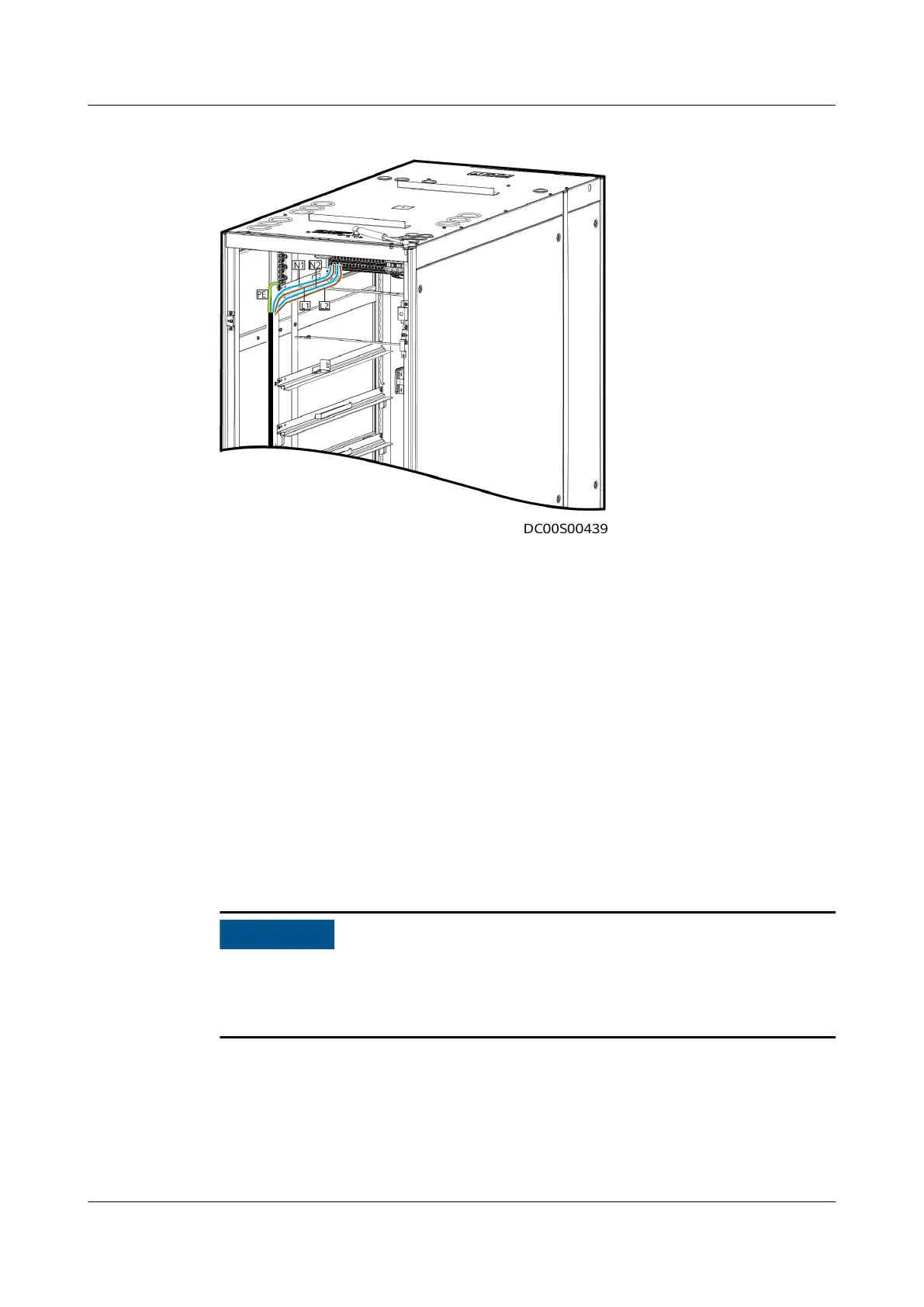

Figure 4-108 Cable route example in the bottom cable routing scenario
4.3.3.3 Connecting PDU2000 Power Cables
Context
If the PDU2000 is not
congured with industrial connectors, connect the PDU2000
cables.
Preparations
Tools: Phillips screwdriver,
at-head screwdriver, diagonal pliers, protective gloves
Material: cable tie
Procedure
Step 1 Connect the PDU2000 cables.
● If PDU2000 cables have been connected onsite, go to Step 2.
● Connect cables to the PDU2000 based on the type of the PDU2000 and the silk
screen on the wiring port. The following cable connection is for reference only.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 141
