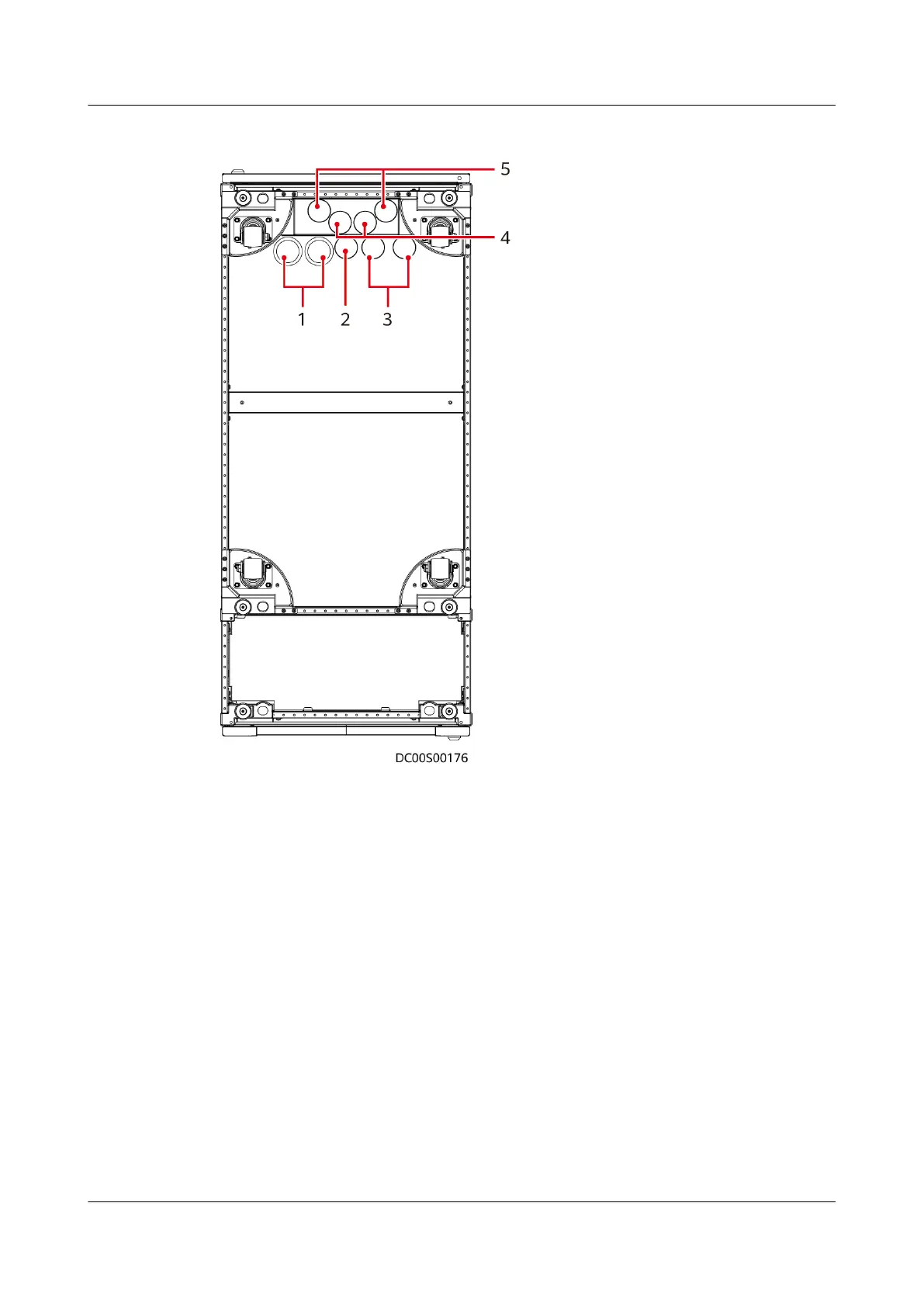

Figure 4-107 Holes for routing cables through the bottom of the cabinet
(1) Smart cooling product water inlet pipe and
drainpipe holes
(2) Hole for the signal cable and water sensor
cable
(3) Hole for the input power cable and battery
cabinet power cable
(4) Smart Cooling Product refrigerant liquid
pipe hole
(5) Smart Cooling Product refrigerant gas pipe
hole
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 140
