2. Install the drainpipe.

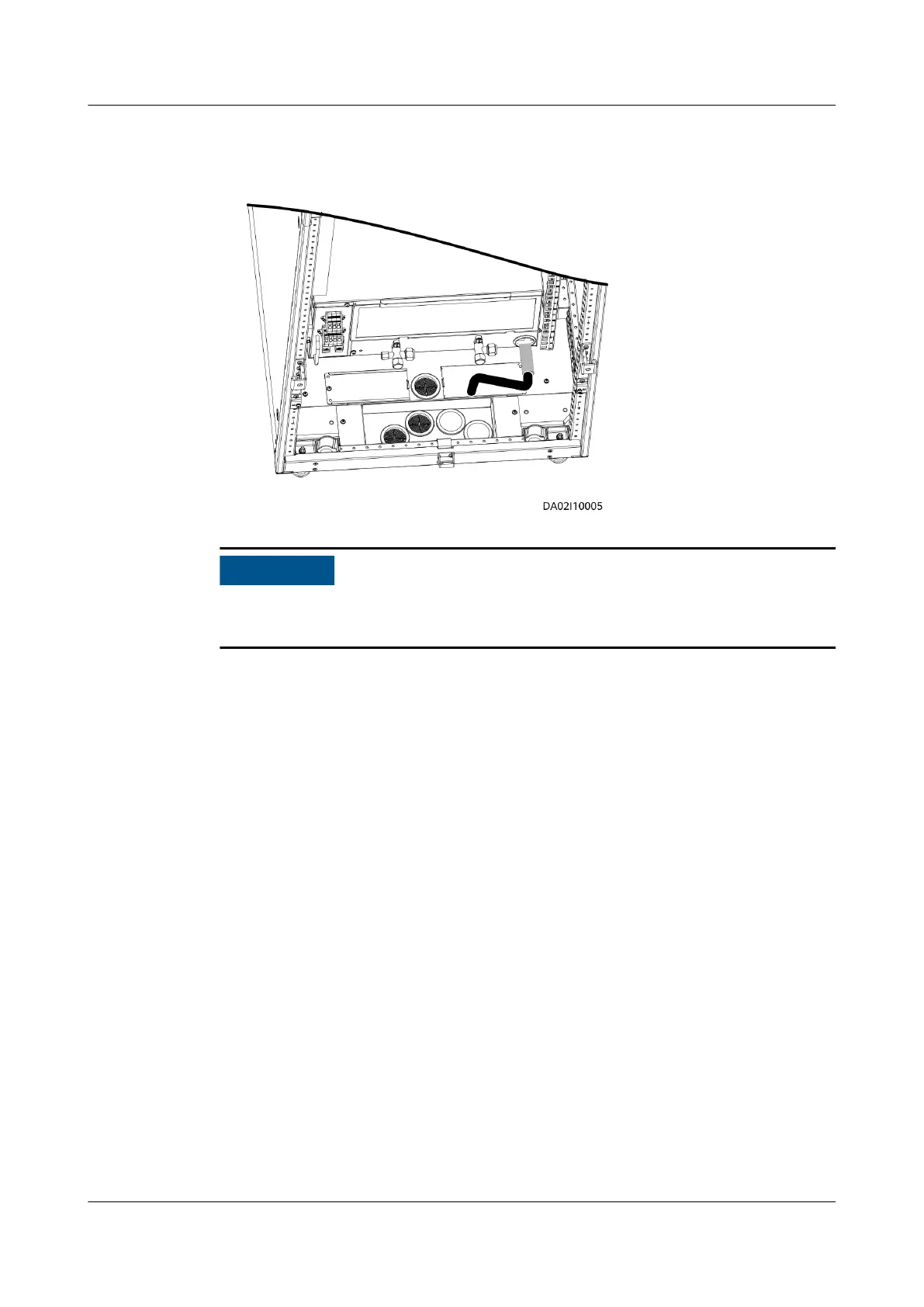

Figure 4-34 Drainpipe routed from the bottom
After routing a water pipe, secure it to the pipe assembly using cable ties, and seal
the cable hole using
restop putty.
----End
Follow-up Procedure
Step 1 After connecting the drainpipe, power on the smart cooling product, add water to
the water pan until the low oat switch is raised, and check whether drainage is
normal.
Step 2 Ensure that the condensate pipe is not bent during installation and connection.
----End
4.2.4.10 Connecting Cables
The indoor unit uses the single-phase power supply from the smart cooling
product control unit. The outdoor unit is energized by the power distribution unit
in the cabinet.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 93
