4.3.2 Grounding the Smart Module
1. Connect the ground point in the cabinet to the general ground bar.
2. Connect the general ground bar in the cabinet to the oor ground bar or
collective ground bar.

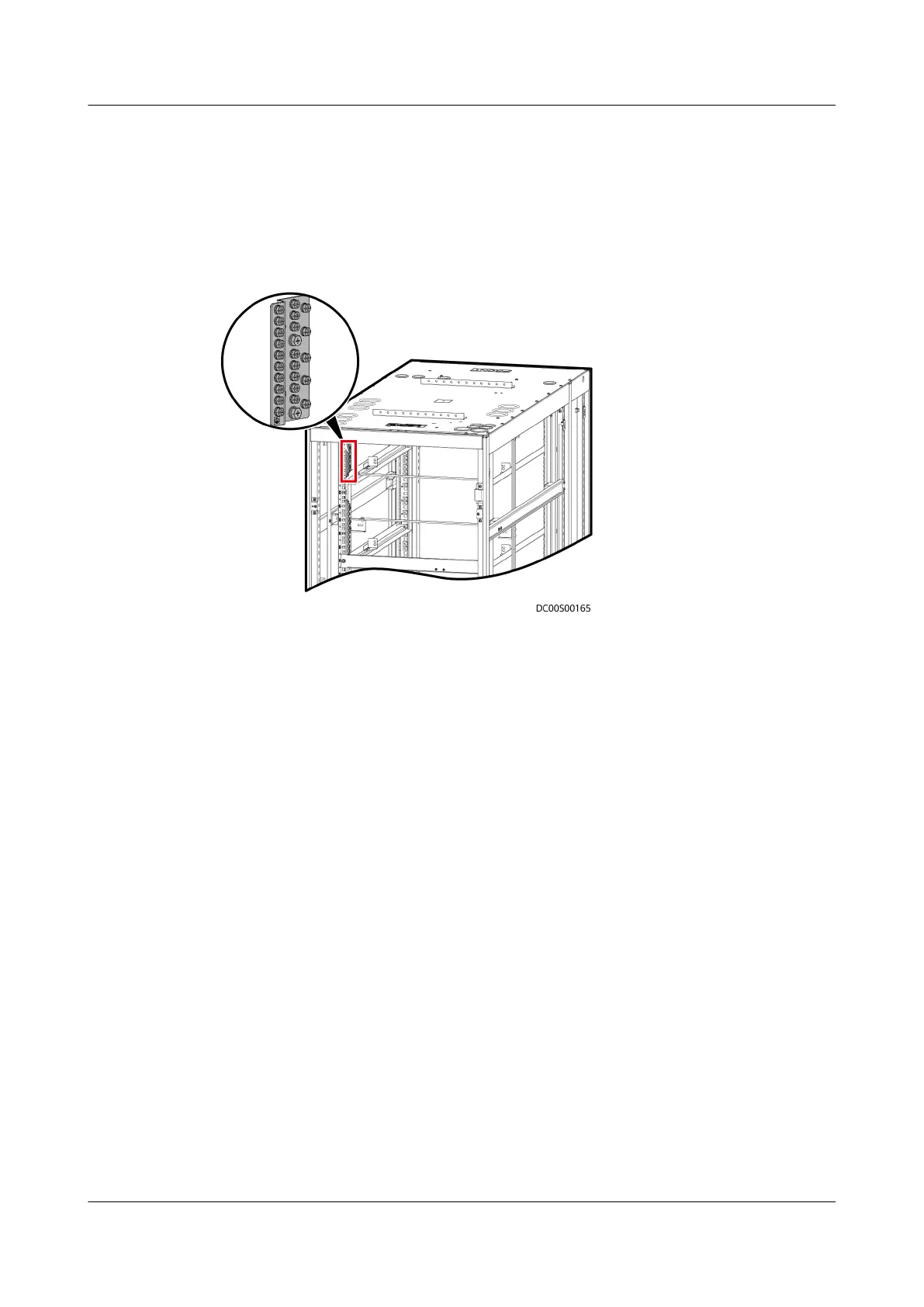

Figure 4-102 General ground bar
4.3.3 Cable Connections to the Power Supply and Distribution
System
4.3.3.1 Top Cable Routing
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 136
