Step 2 Connect one end of the network cable to any GE network port on the VCN.
Figure 4-116 Ports on the VCN
(1) Ground terminal (2) GE1 port (3) GE2 port
(4) Power button (5) Power port
Step 3 Connect one end of the power cable to the input power port on the power module
and the other end to the PDU2000 in the cabinet.
After connecting the power cable, turn on the power switch on the panel to start the
device.
----End
4.3.4.4 Connecting IVS1800 Cables
Prerequisites
Cables have been prepared.
Procedure
Step 1 Connect one end of the ground cable to the ground terminal on the device and
the other end to the ground point on the cabinet. A Phillips screwdriver and M4
screws are required.
The customer needs to prepare the ground cable.
Step 2 Connect one end of the network cable to any GE network port on the IVS.

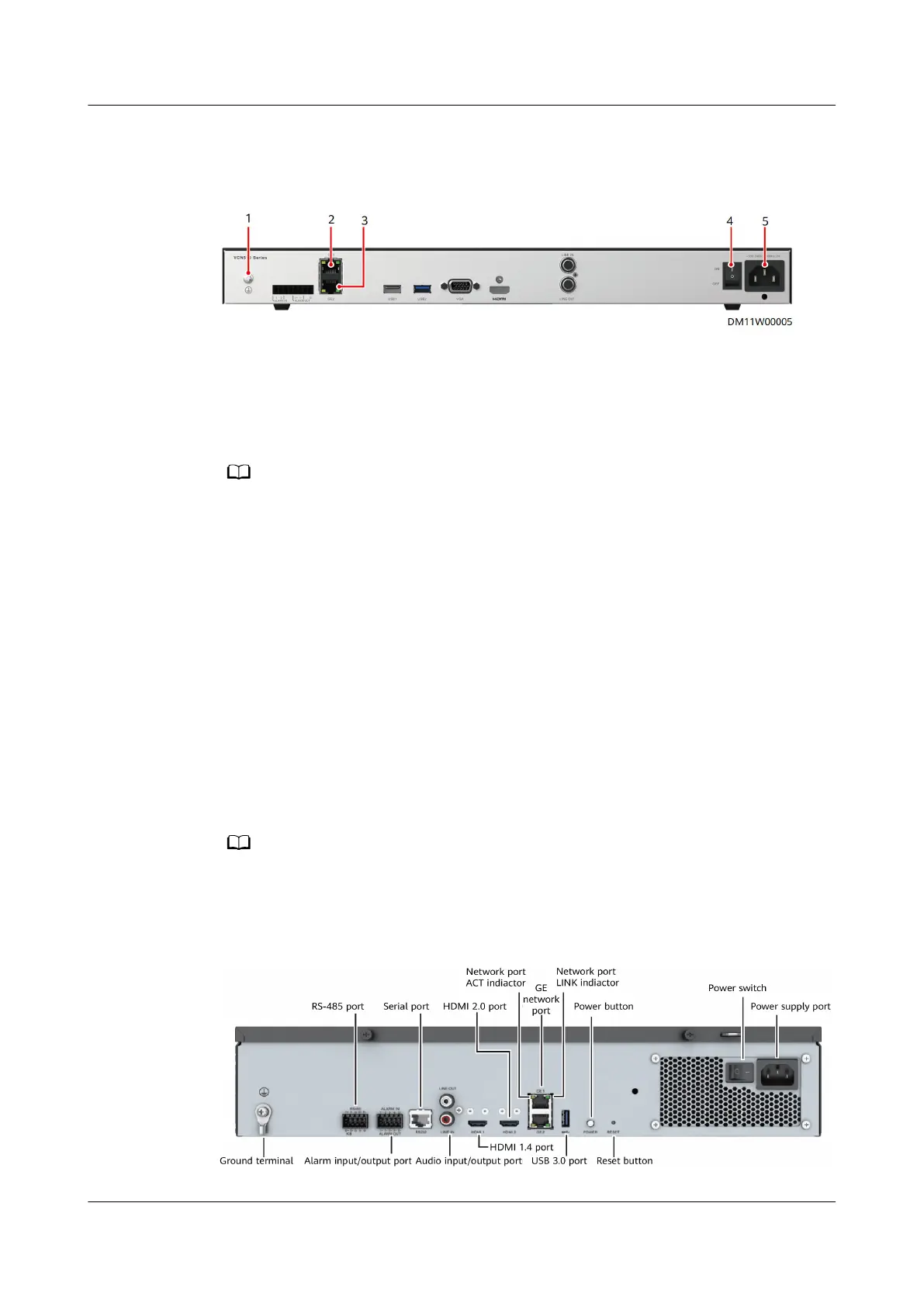

Figure 4-117 IVS Rear panel
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 148
To Next Page
