Step 3 Connect one end of the power cable to the input power port on the power module
and the other end to the PDU2000 in the cabinet.
After connecting the power cable, turn on the power switch on the panel to start the
device.
----End
4.3.4.5 Connecting a Cable to the WLDS900 Water Sensor
Prerequisites
● Water sensor cables have been routed.
● The monitoring cables to be connected have been prepared.
Procedure
Step 1 Connect one end of the network cable that has been routed to the water detector
to the AIDI_2 port on the ECC800-Pro.

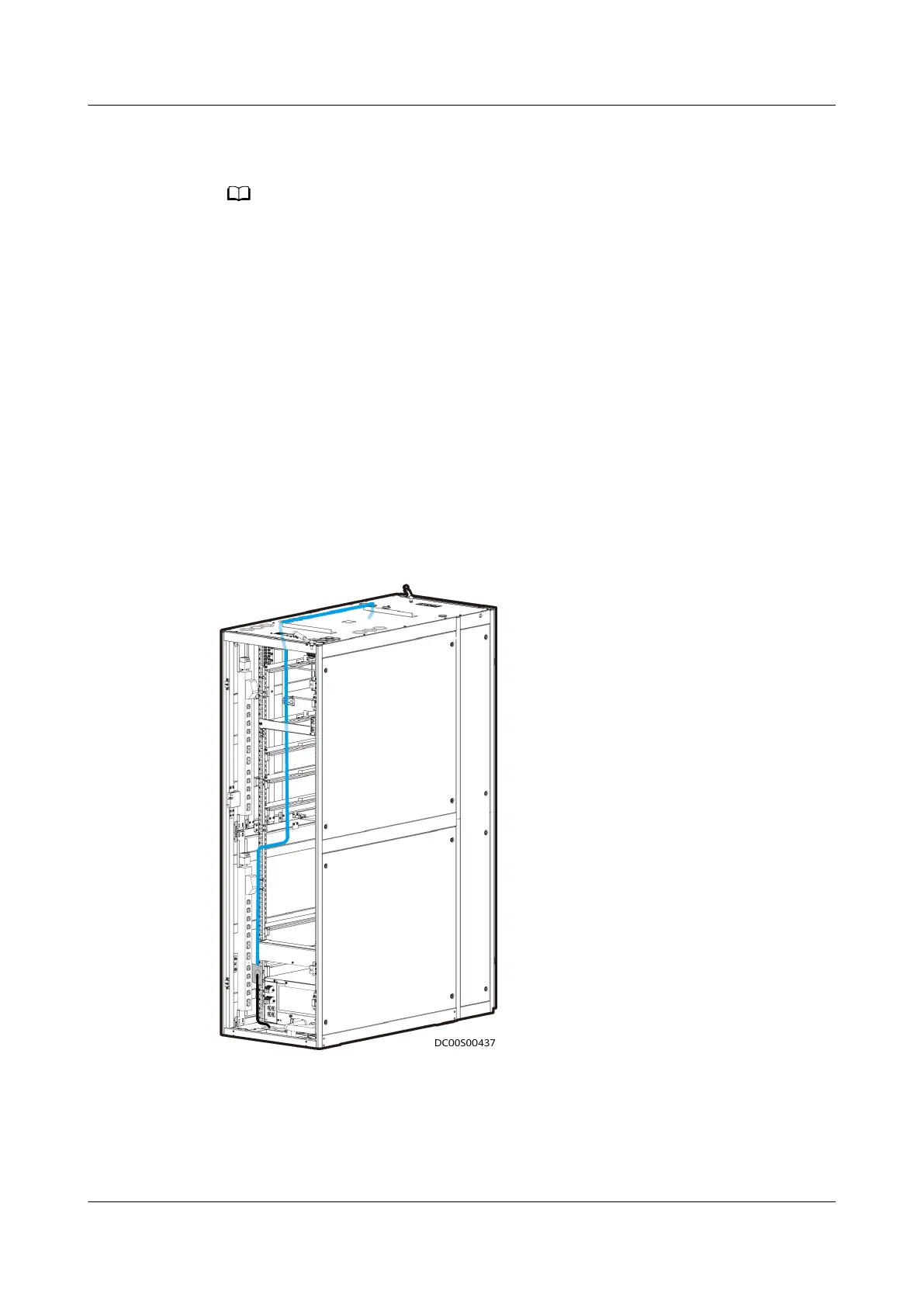

Figure 4-118 Routing a signal cable
----End
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 149
