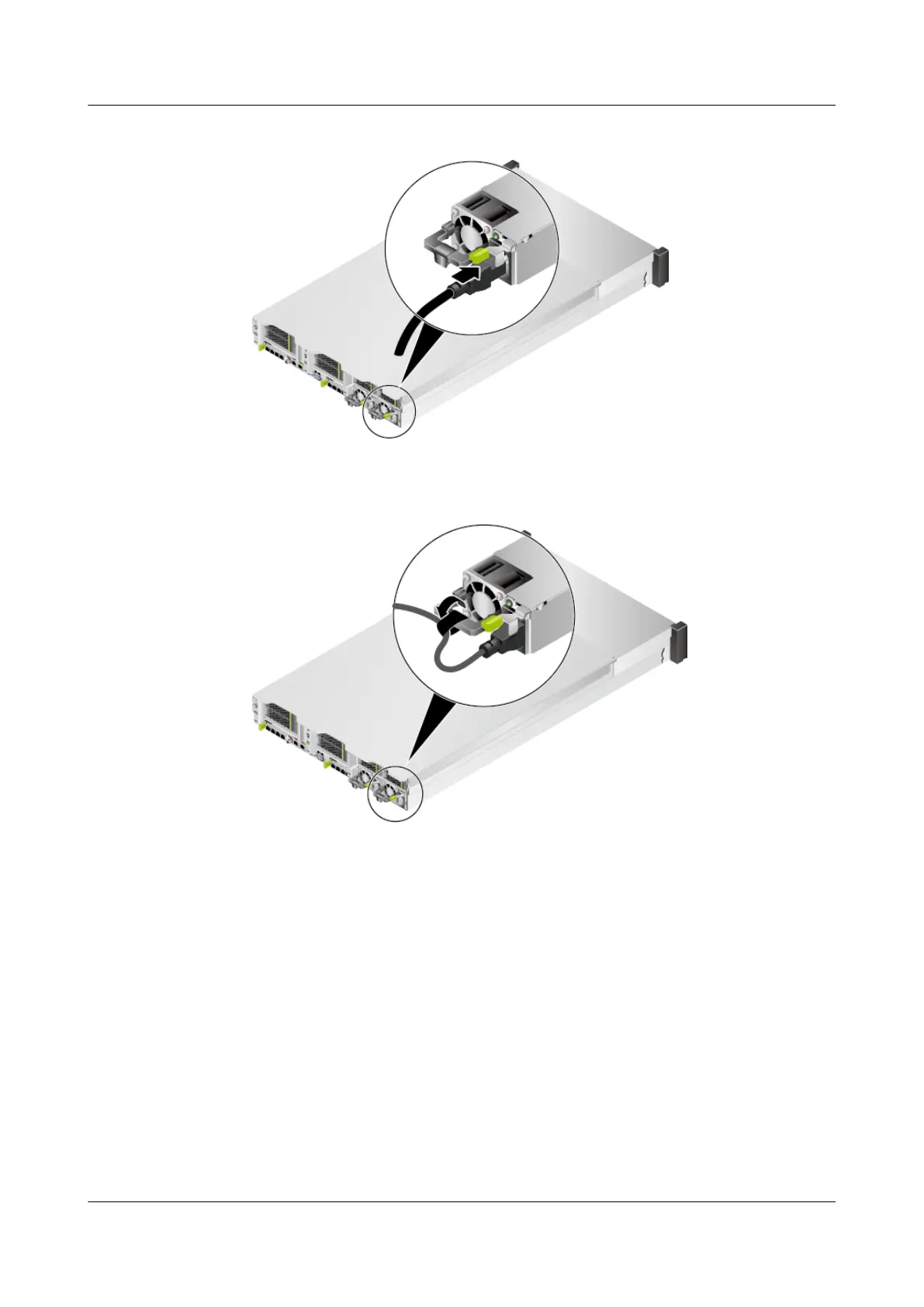

Figure 4-61 Connecting the power cable
3. Use a hook-and-loop fastener to secure the power cable.
Figure 4-62 Securing the power cable
4. Route the power cable along the cable tray neatly, use cable ties to bind the
power cable, and use diagonal pliers to trim
o the excess of the cable ties.
----End
4.2.6.8 (Optional) Installing a Camera
Prerequisites
● A camera and tools for installing it have been prepared.
● The network cable used for camera communication has been prepared.
Context
The camera and its mounting plate need to be installed on the top of the front
door of the end cabinet.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 115
