3.2.2 6 kVA UPS

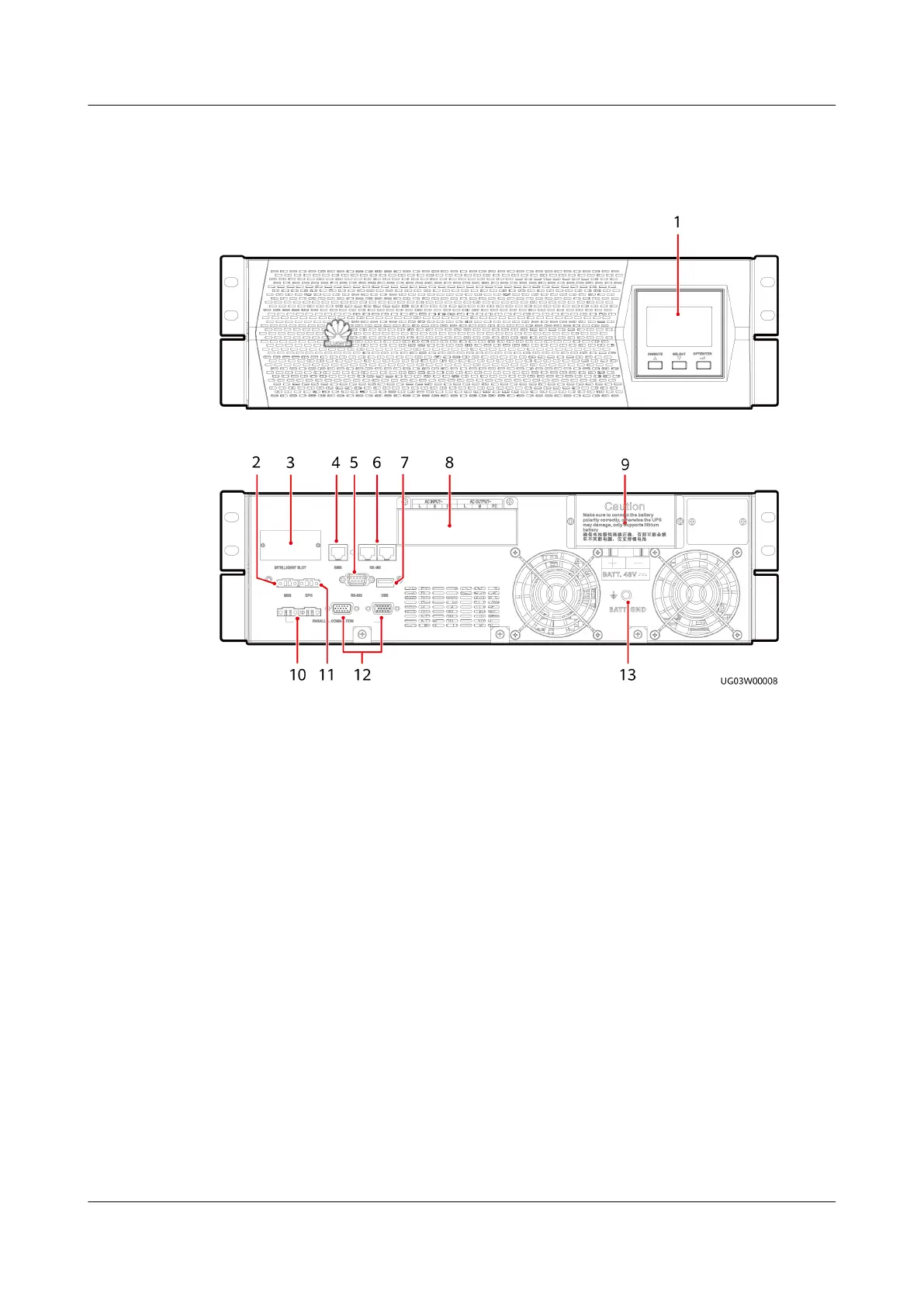

Figure 3-2 Front and rear views of a 6 kVA UPS
(1) Liquid crystal display
(LCD)
(2) Maintenance bypass
(MBS) port
(3) Optional card slot
(4) Battery management
system (BMS) port
(5) RS232
communications port
b
(6) RS485
communications ports
(connect to northbound
devices)
(7) USB port
a
(8) AC input and output
terminals (behind the
cover)
(9) Battery input
terminal (behind the
cover)
(10) Parallel current
equalization port
(11) Emergency power-
o (EPO) port
(12) Parallel
communication ports
(13) Battery PE terminal
FusionModule500 Smart Mini Data Center
User Manual 3 System Architecture
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 22
