Procedure
Step 1 Install busbars.
1. Open the cabinet rear door.
2. Install oating nuts at the busbar installation position.
3. Secure the busbar to the installation position using screws.
The busbar is installed 2 U above the last lithium battery. Determine the busbar
installation position based on the lithium battery
conguration.

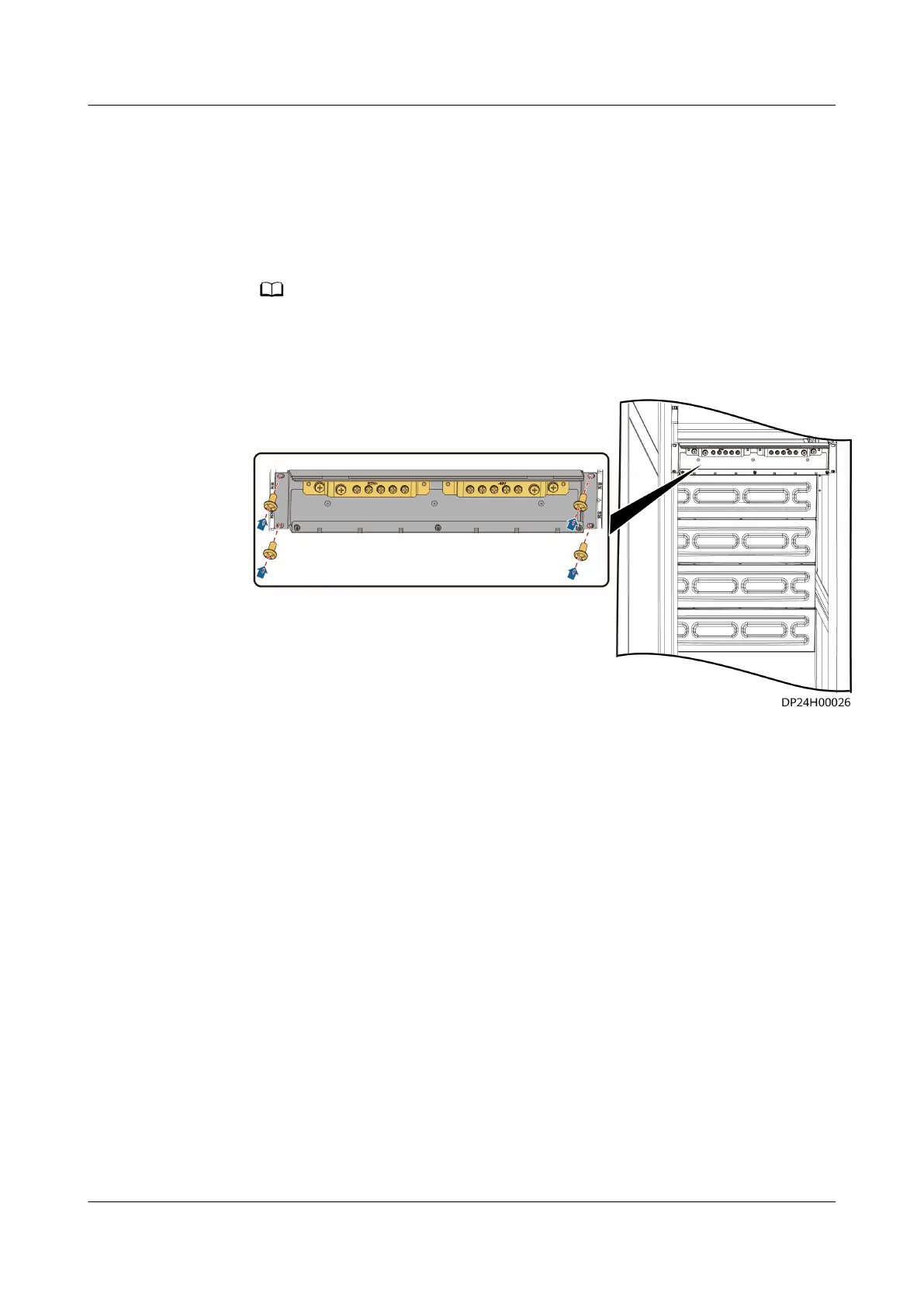

Figure 4-42 Installing busbars
----End
4.2.5.3 Installing PDU2000s
Context
Two half-height rPDUs for vertical installation are congured.
Procedure
Step 1 Install a half-height PDU2000.
1. Open the cabinet rear door.
2. Secure the half-height PDU2000 to the installation position using screws.
Step 2 Install the other PDU2000 in the same way.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 102
