4.3.1 System Cabling Rules
Attaching Cable Labels
A cable label must be consistent with the corresponding cabinet number.
Find the corresponding cable based on the wiring diagram in the cable tting bag,
and attach the corresponding cable label taken out from the cable tting bag to
both ends of the cable by wrapping the ends.

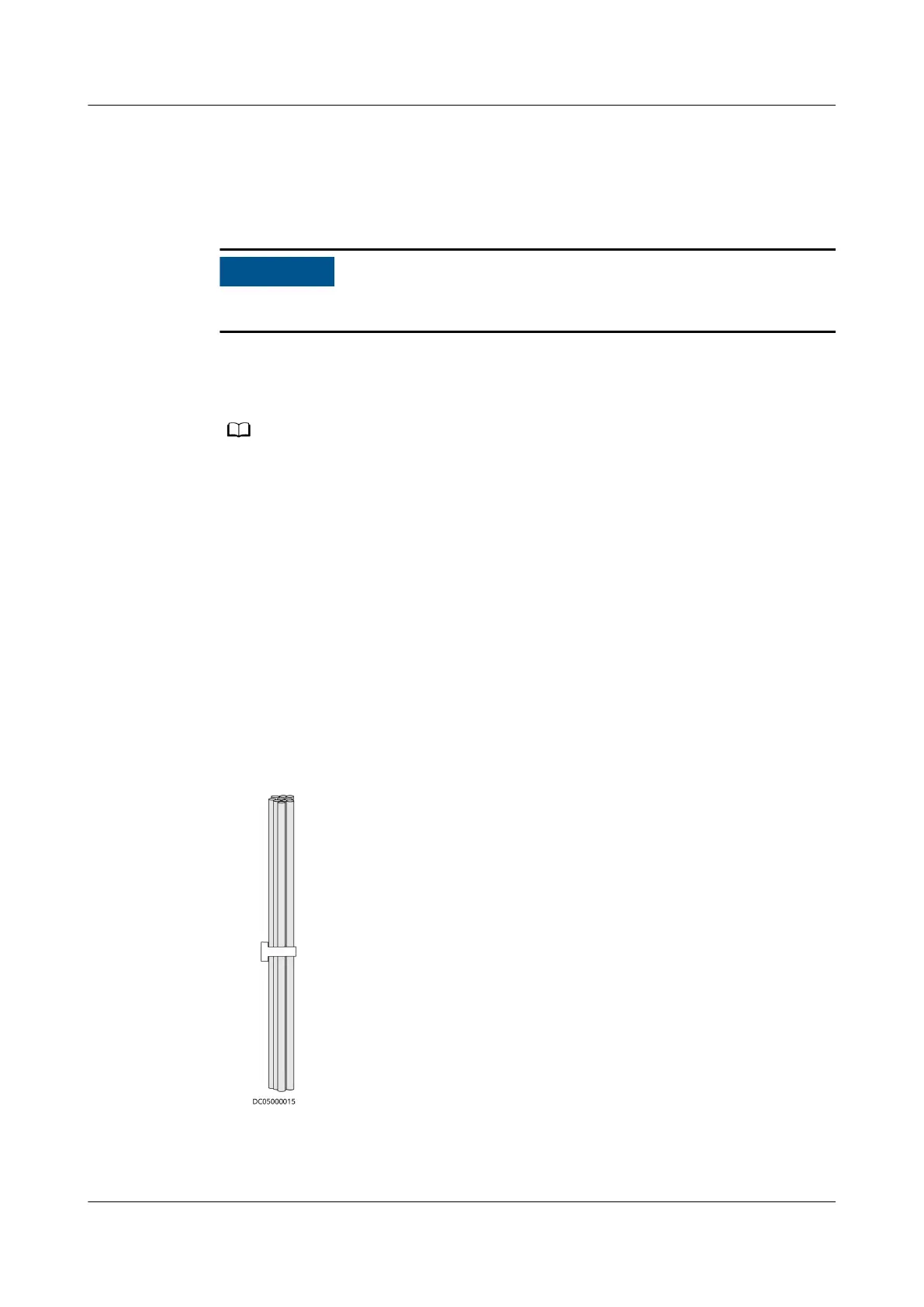

The cable labels must completely wrap the cable without wrinkles.
Attach the cable labels 20 mm away from the plug except for special
circumstances. For example, a label shall not be attached to the bending part of a
cable or attached in some positions that may
aect cable installation. If a label
conicts with a cable tie, attach the label to the outer side of the cable tie.
Attach labels to both ends of a cable.
Requirements for Neatly Routing and Binding Cables
To route and bind cables in an appealing way, follow these rules:
1. Neatly organize exterior cables in a large bundle of cables and prevent cable
tangles that are avoidable, as shown in Figure 4-94.
Figure 4-94 Neatly organizing cables
2. Keep a large number of cables neat and appealing in a cabinet by using cable
organizers. Move the excess parts of cables in unnoticeable positions, as
shown in Figure 4-95.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 132
