Indi
cato
r
Color Name Operat
ion
Status Description
O The system is normal.
3.4.3.5 PAD
The pad allows the wireless access from the data center management system. You
can monitor the equipment in the data center and environmental parameters in
real time over the app. The recommended model is T5-10.

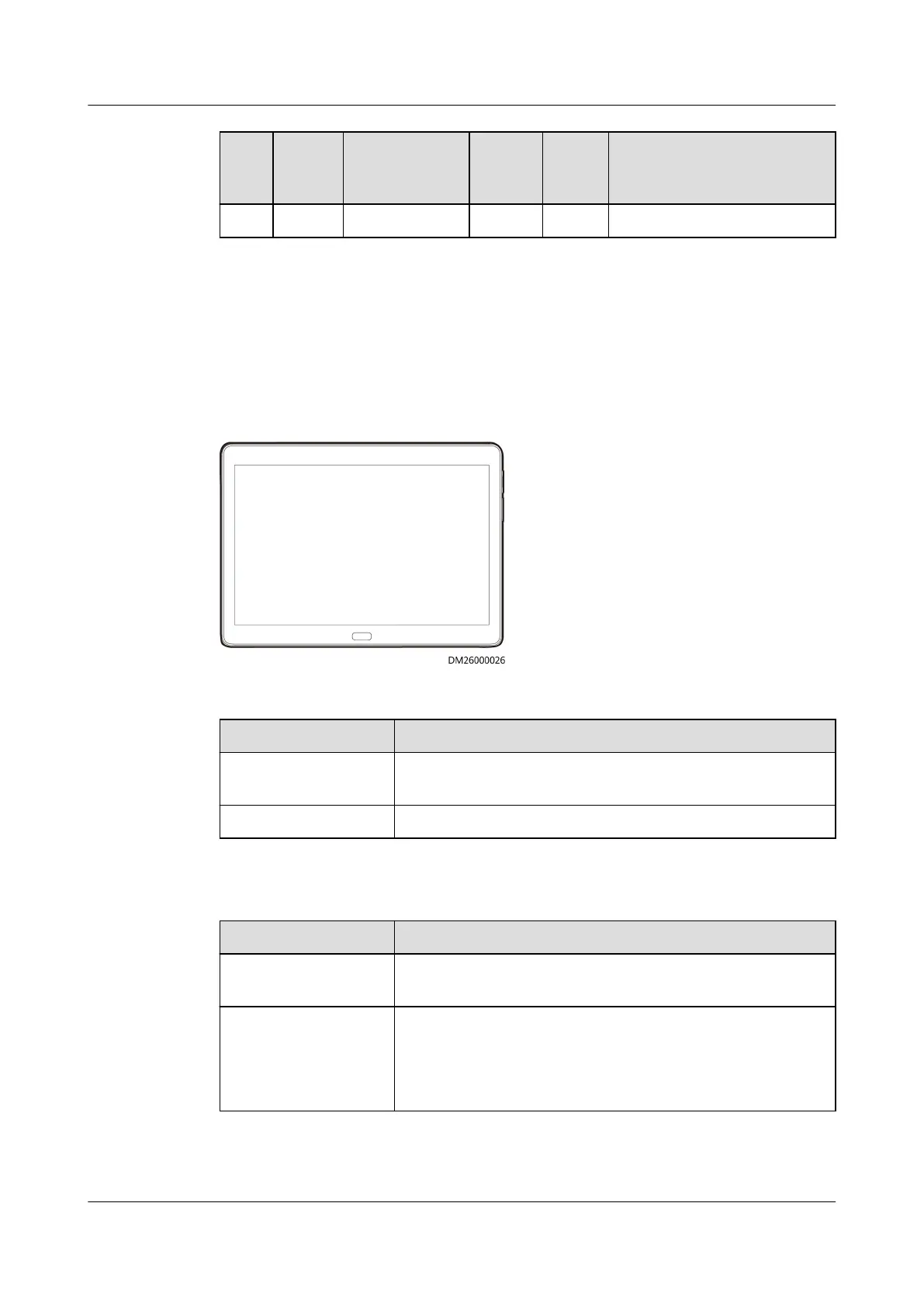

Figure 3-20 PAD
Table 3-37 Pad structural specications
Item
Specications
Dimensions (L x W x
H)
243 mm x 164 mm x 7.8 mm
Weight About 460 g
Table 3-38 Pad technical specications
Item
Specications
Touchscreen 10.1-inch, 1920 x 1200 resolution, IPS screen, and multi-
touch
Storage ● Machine: 32 GB
● Memory: 3 GB
● LPDDR3 extension card: Micro SD, a maximum of 256
GB (non-standard conguration)
FusionModule500 Smart Mini Data Center
User Manual 3 System Architecture
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 51
