4.2.6.5 Routing the Cable to a WLDS900 Water Sensor
If the water sensor is required, perform the following steps to install it.
Context
● The water sensor is composed of the water detection cable (BOM number:
33010445), water detector (BOM number: 33010352), and conversion cable
(packed with the water detector).
● The water detector is bound to the 5th U position on the left mounting bar of
the cabinet rear door.
● The water detection cable and water detector are interconnected using the
conversion cable.
● A single water detection cable is 5 meters long. If a longer cable is required,
connect the male connector of a water detection cable to the female
connector of another. One water detector can be connected to a maximum of
nine water detection cables.

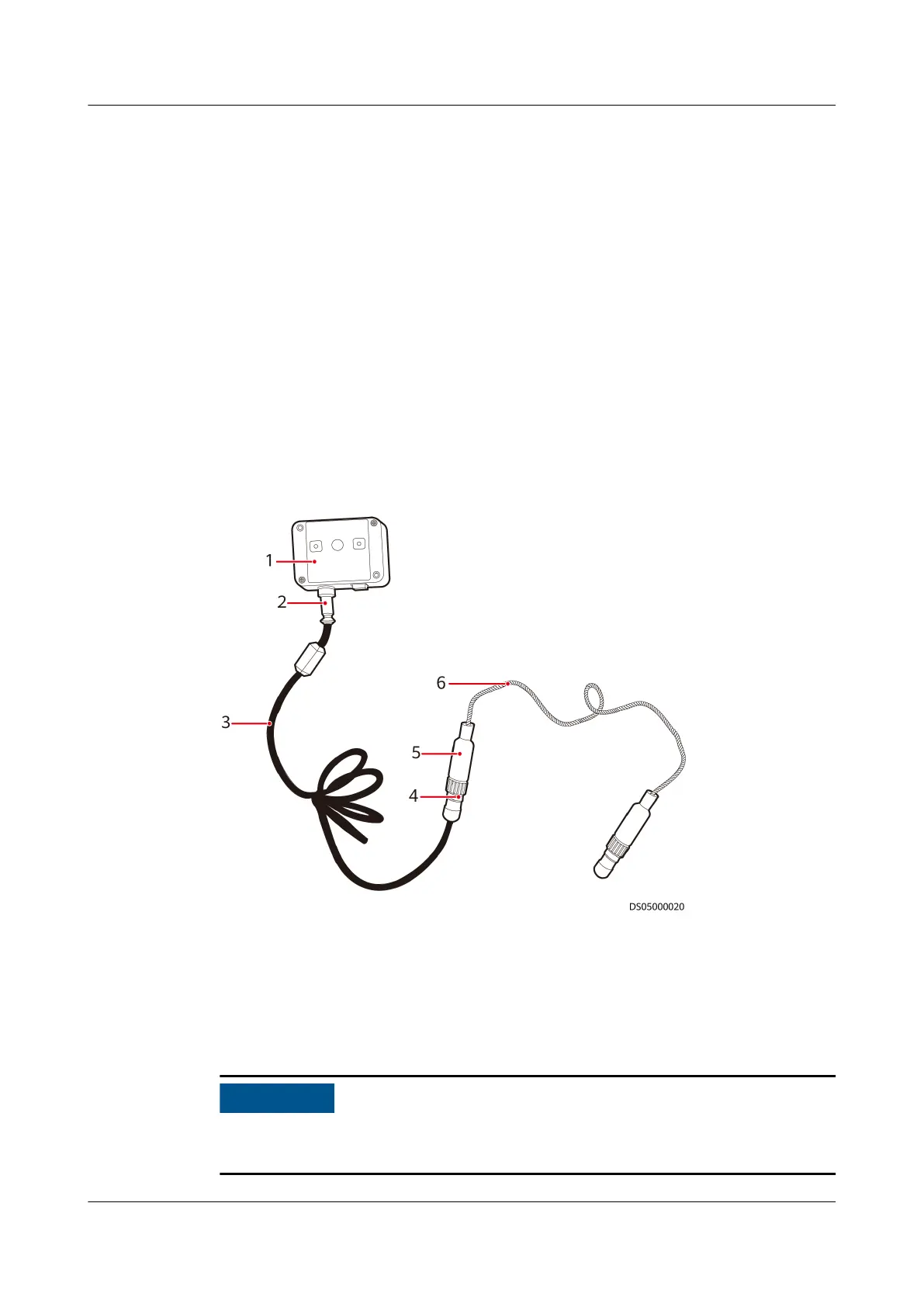

Figure 4-52 Water sensor
(1) Water detector
(2) Conversion cable end A,
connected to the water
detector
(3) Conversion cable
(4) Conversion cable end B,
connected to the water
detection cable
(5) Water detection cable end
A, connected to the conversion
cable
(6) Water detection cable
Do not contact the water detection cable to metal, for this action will cause a
false alarm. Take protective measures when routing the water detection cable.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 110
