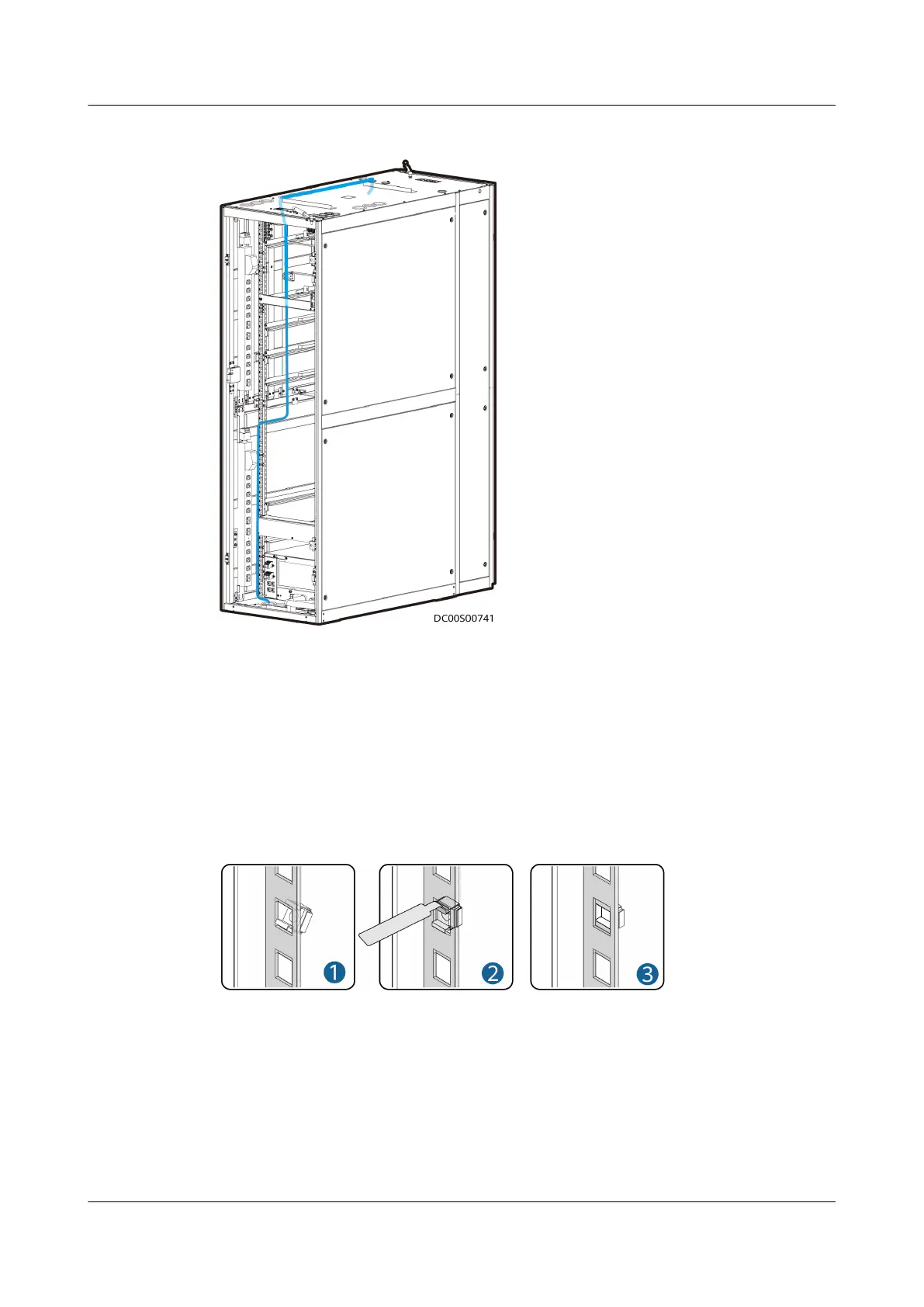

Figure 4-57 Signal cable routing
----End
4.2.6.7 (Optional) Installing a Server
Procedure
Step 1 Determine the installation position of the server and check whether oating nuts
are installed. If not, install them
rst.
Figure 4-58 Installing a oating nut
Step 2 Install guide rails.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 113
