Item Specications
Output frequency 50 Hz/60 Hz
General input 2 x 63 A/2P
UPS input 63 A/1P
Battery power distribution 125 A/2P x 2
Air conditioner power distribution 25 A/1P MCB x 2
UPS output 63 A/1P
UPS bypass 63 A/1P
Output branch 4 x 40 A/1P
Dimensions (H x W x D) 130 mm x 442 mm x 450 mm
3.2.4 (Optional) rPDU
The rPDU is a basic socket, rather than a monitoring socket.

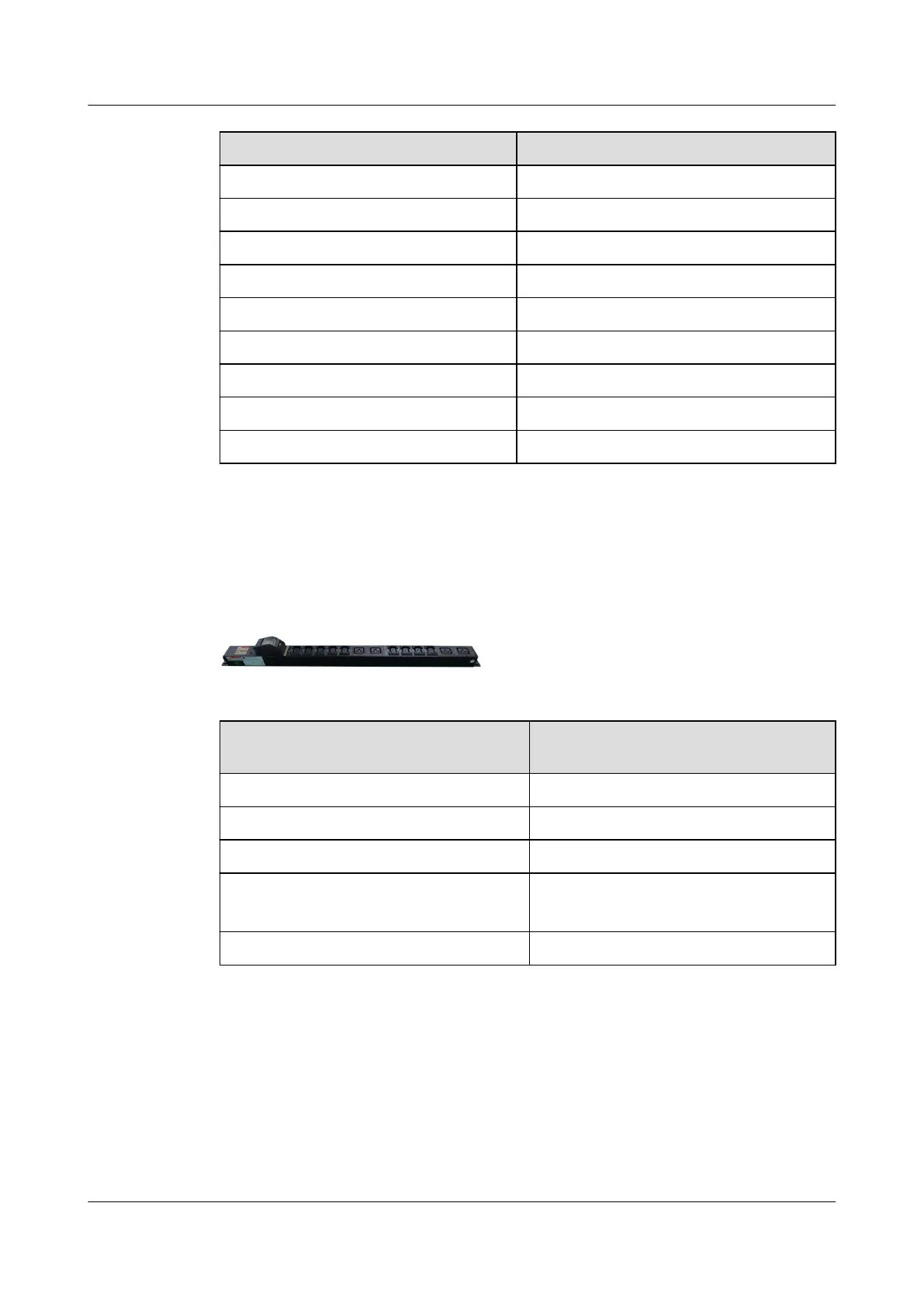

Figure 3-3 Half-height rPDU
Table 3-4 rPDU technical specications
Item
Specications (Vertically Installed
Half-Height rPDU)
Rated current 32 A
Input frequency 50 Hz/60 Hz
Input port Cord end terminal, no input cable
Output port conguration IEC: 9 x C13 + 3 x C19
China standard: 9 x 10 A + 3 x 16 A
Rated output current 32 A
3.2.5 Lithium Battery ESM-48100B1
Lithium batteries provide backup power. When the mains is normal, the UPS
charges batteries. When the mains fails, lithium batteries supply power to the UPS.
FusionModule500 Smart Mini Data Center
User Manual 3 System Architecture
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 24
