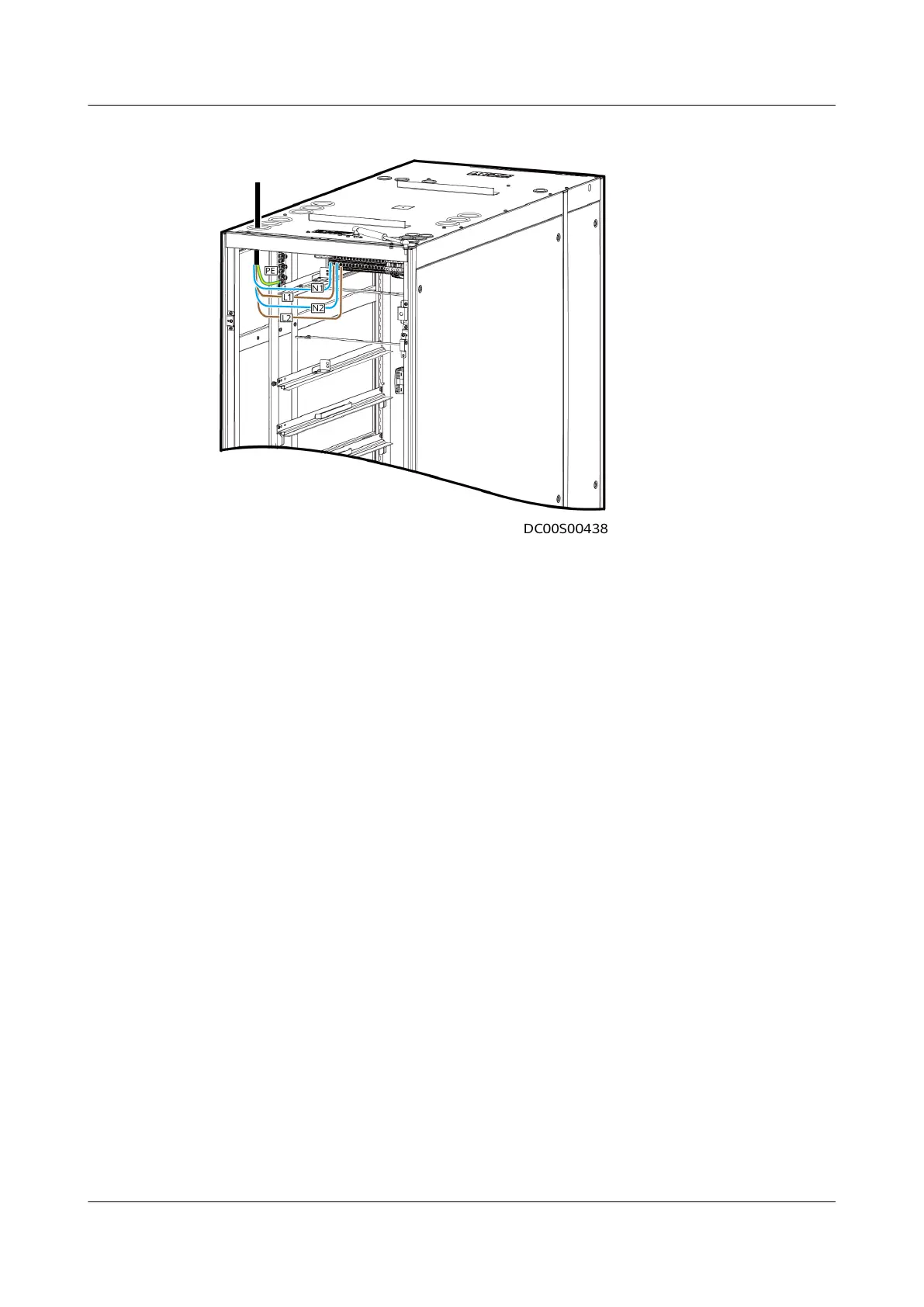

Figure 4-106 Connecting input power cables to the PDU
----End
4.3.3.2 Bottom Cable Routing
Cables connect to the same positions on the power distribution subrack
irrespective of whether cables are routed through the top or bottom of the
cabinet, but the cable routes inside the cabinet are
dierent.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 139
