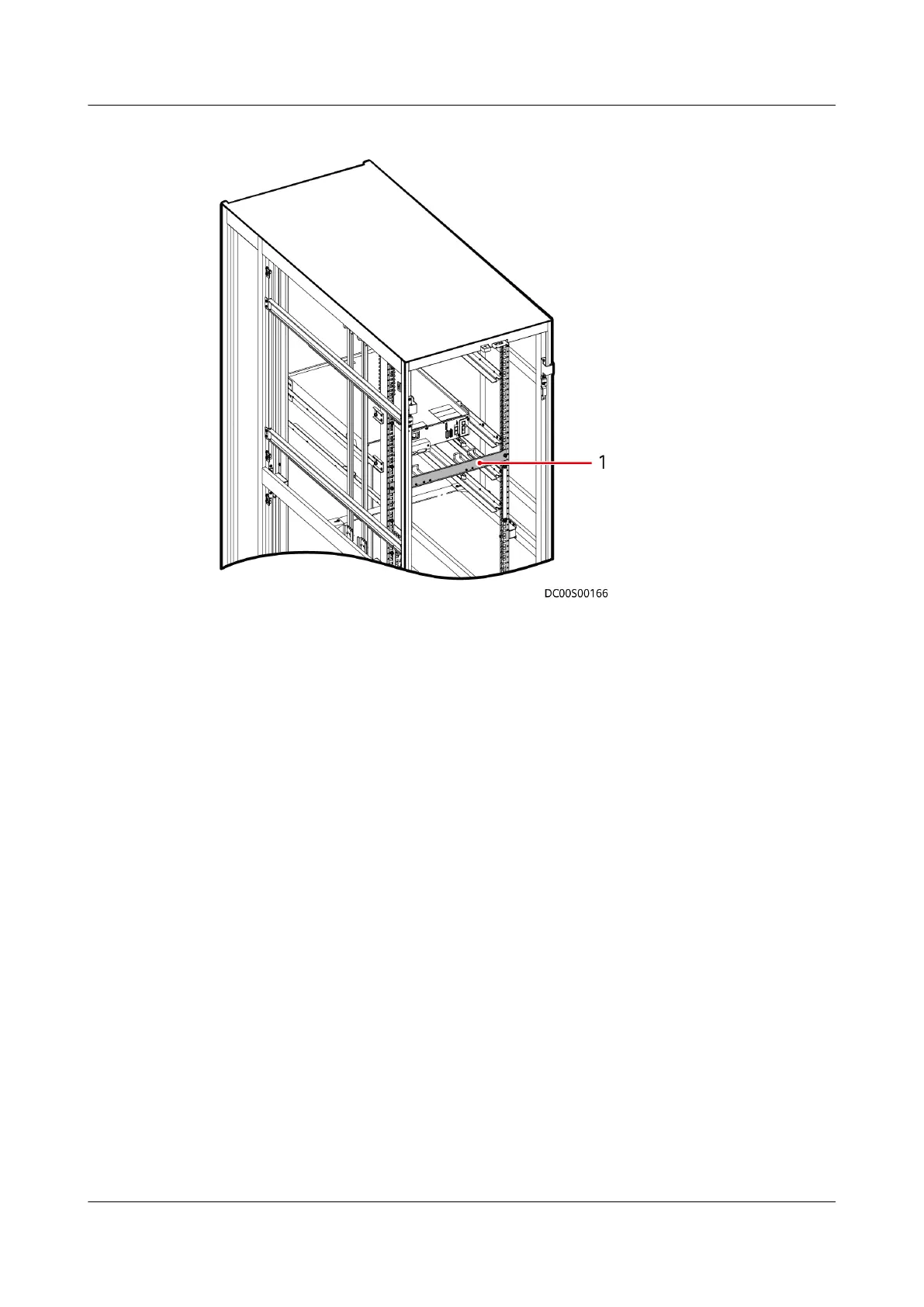

Figure 4-105 Position for binding cables routed across the cabinet interior
(1) Position for binding cables routed across the cabinet interior
4.3.3.1.2 Connecting Cabinet Input Power Cables
Context
The power distribution subrack position in the cable connection description is for
reference only. The actual position prevails.
Procedure
Step 1 (Optional) Connect input power cables to the PDU.
1. (Optional) Remove the transparent protective panel at the rear of the PDU.
2. Connect input power cables to the PDU.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 138
