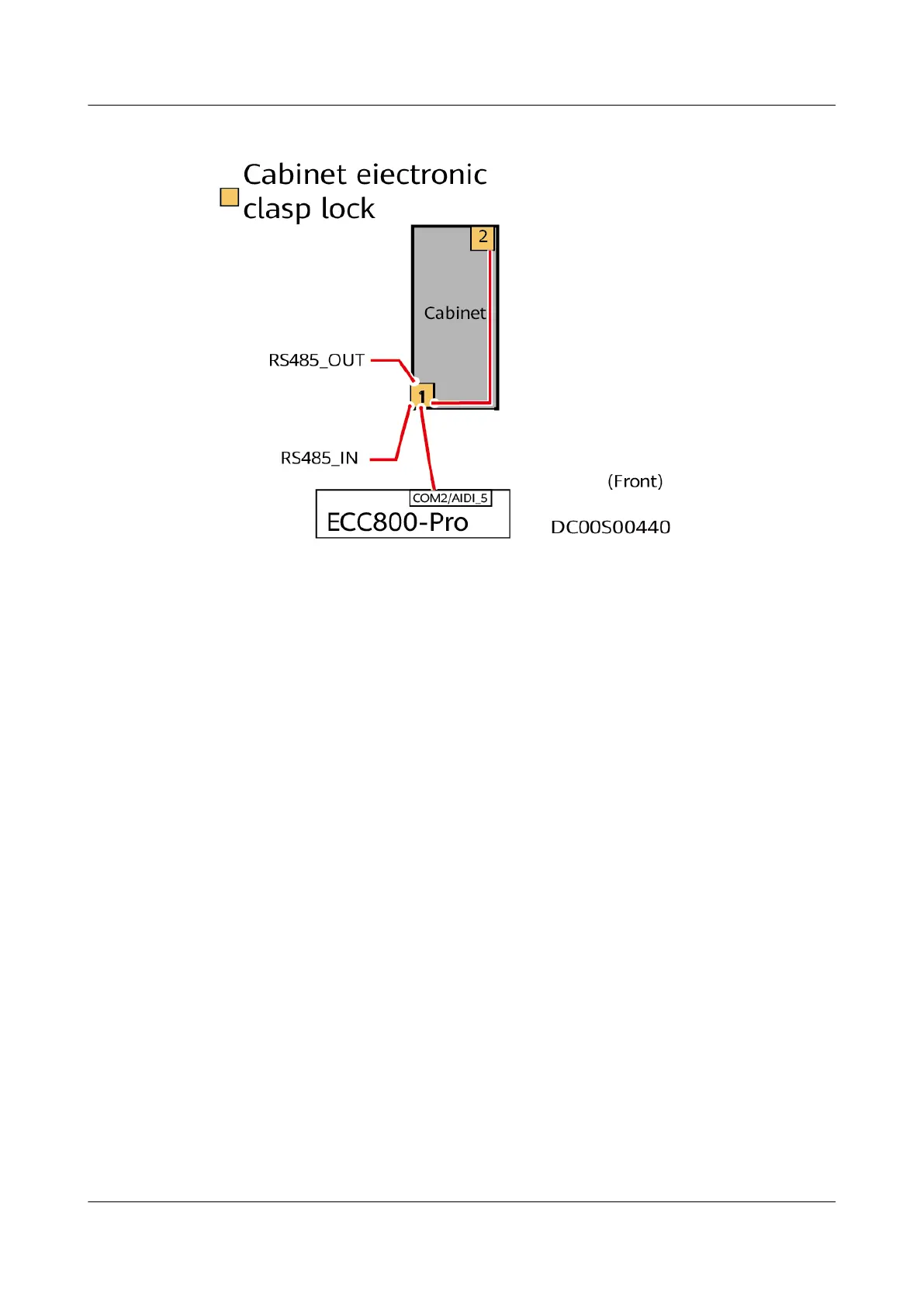

Figure 4-114 Connecting cabinet electronic clasp lock cables
----End
4.3.4.2 Connecting Cabinet T/H Sensor Cables
Prerequisites
The required cables have been prepared.
Procedure
Step 1 Connect the OUT port on the T/H sensor on the front door to the RS485_IN port
on the T/H sensor on the rear door in series.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 146
