The camera features a three-axis design. The camera can be adjusted by –175° to +180°
horizontally, and the lens can rotate –175° to +180° and be adjusted by 0° to 65° vertically.
Step 6 Align the transparent cover with the screw holes on the base, close the
transparent cover, and use a Phillips screwdriver to tighten the screws to 0.8 N·m.

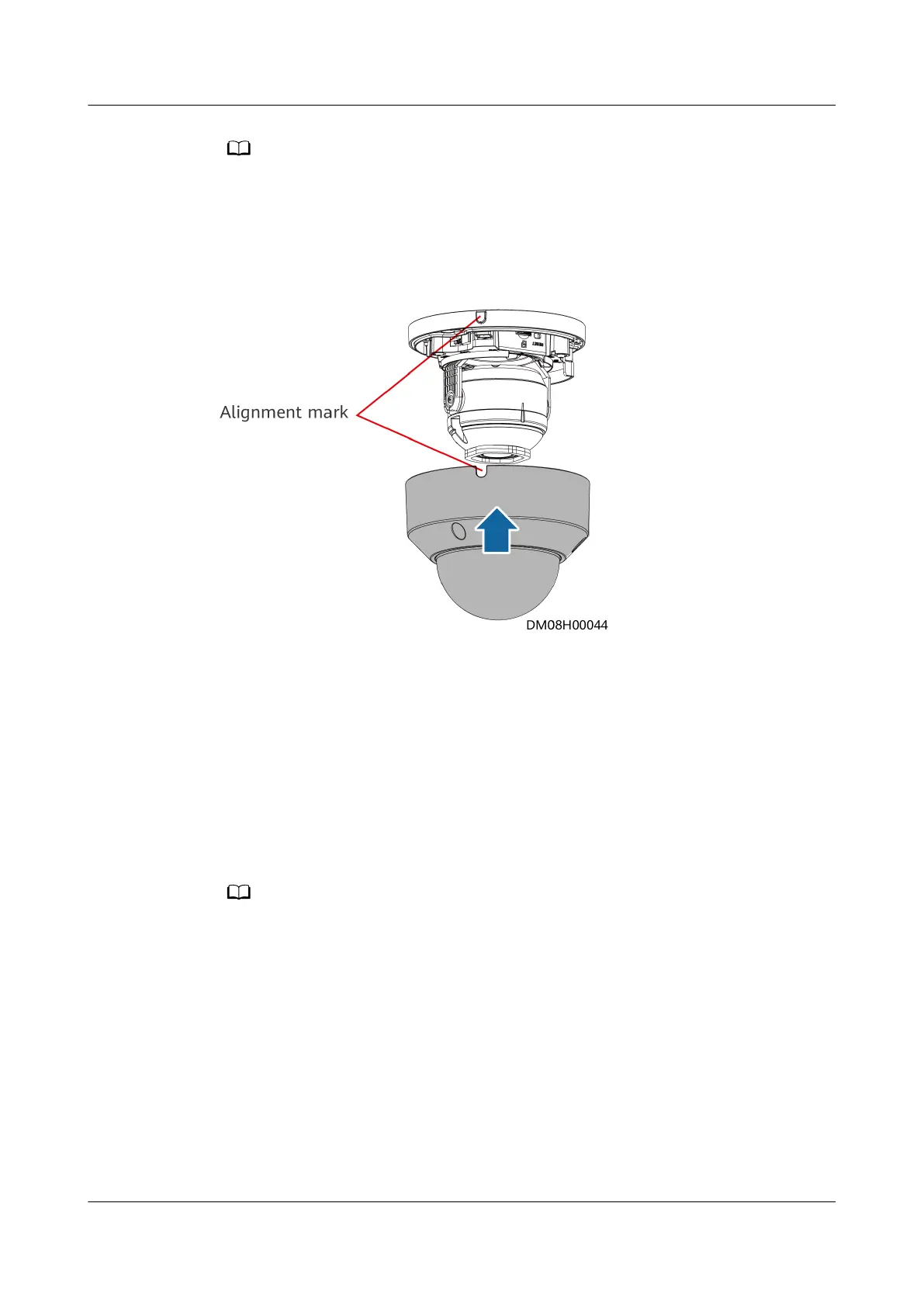

Figure 4-68 Installing the transparent cover
----End
4.2.6.9 (Optional) Installing a LAN Switch
Procedure
Step 1 Locate the LAN switch installation position in the cabinet, and install guide rails
and
oating nuts.
Step 2 Install the mounting ears delivered with the LAN switch and secure the LAN
switch to the rack rails at the front of the cabinet.
This section describes only the installation method. The actual product appearance prevails.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 119
