Procedure

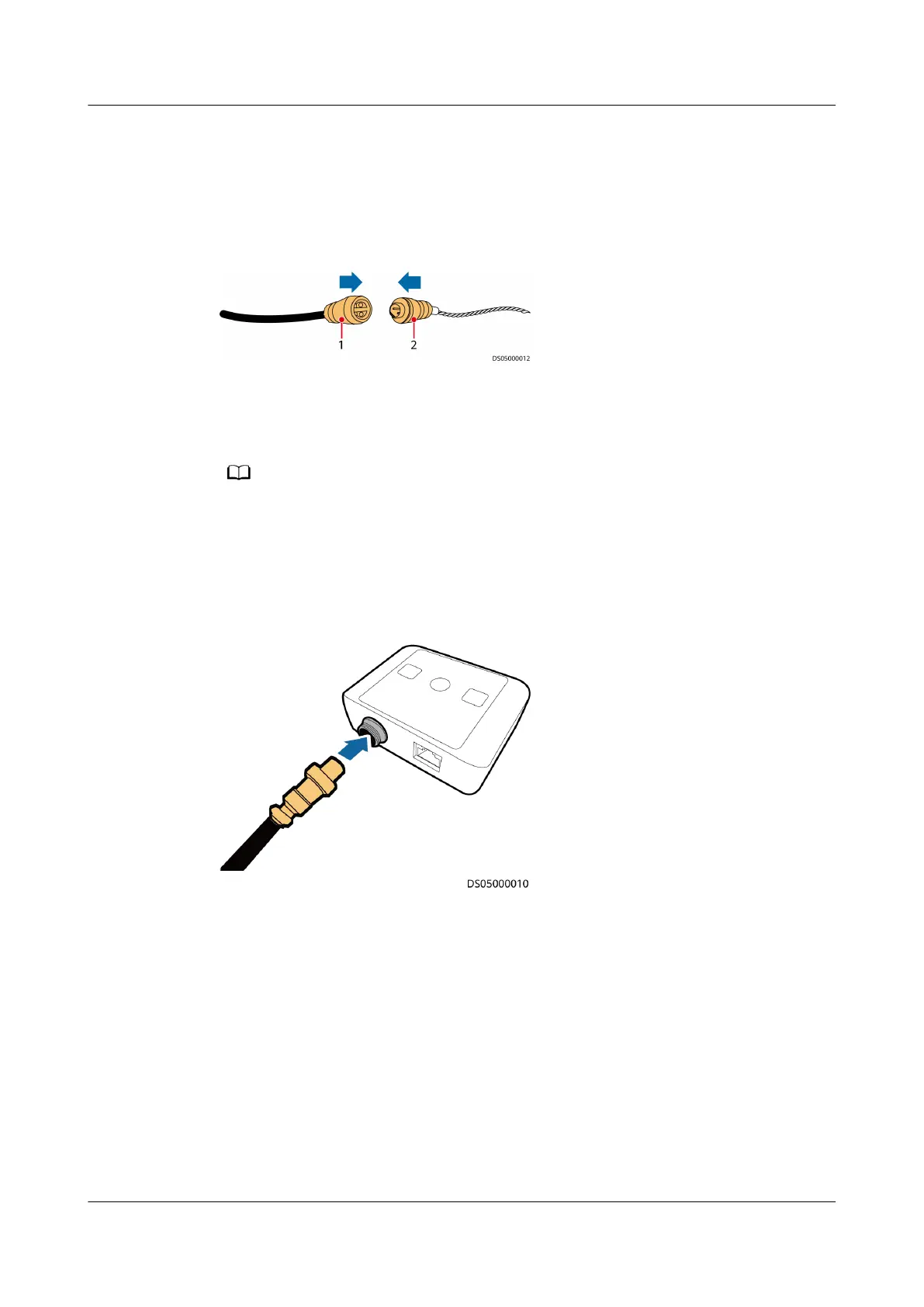

Step 1 Figure 4-53 shows how to connect the water detection cable to the conversion
cable.
Figure 4-53 Connecting cables
(1) Conversion cable end B, connected to the
water detection cable
(2) Water detection cable end A, connected to
the conversion cable
The water detection cable and conversion cable are interconnected through the male and
female connectors.
Step 2 Connect the other end of the conversion cable to the water detector, as shown in
Figure 4-54.
Figure 4-54 Connecting the water detector
Step 3 Plan the installation position for the fastener of the water detection cable. Ensure
that the water detection cable placed on the fastener is in good contact with the
oor.
Step 4 Tear o the protection paper from the rear of the fastener, and then securely
attach the fastener to the
oor.
● If the fastener cannot be securely attached to the oor, go to Step 5.
● If the fastener is securely attached to the
oor, go to Step 6.
Step 5 Drill holes in the oor with the same dimensions as the expansion bolts for the
fastener. Use the expansion bolts to secure the fastener to the oor, as shown in
Figure 4-55.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 111
