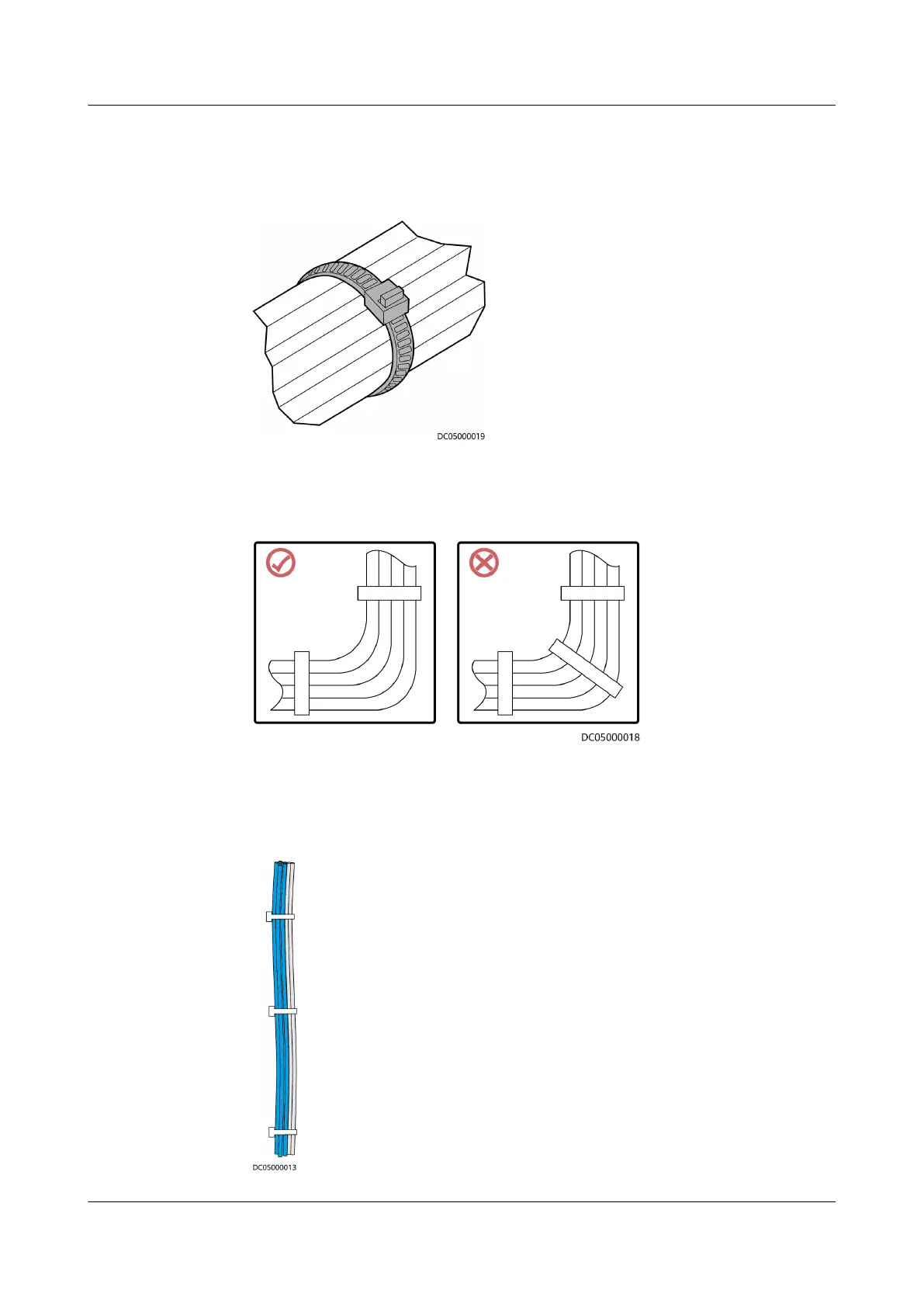

2. After binding cables, cut o the excess parts of cable ties and trim away any
burrs, as shown in Figure 4-99.
Figure 4-99 Cutting o the excess part of a cable tie
3. Do not use cable ties at a place where the cables are bent. Otherwise, the
cable cores may break due to strong stress, as shown in Figure 4-100.
Figure 4-100 Binding cables in a bending area
4. Ensure that the cable ties are wrapped and secured in the same direction and
do not generate interference with subsequent operations, as shown in Figure
4-101.
Figure 4-101 Direction for securing cable ties
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 135
