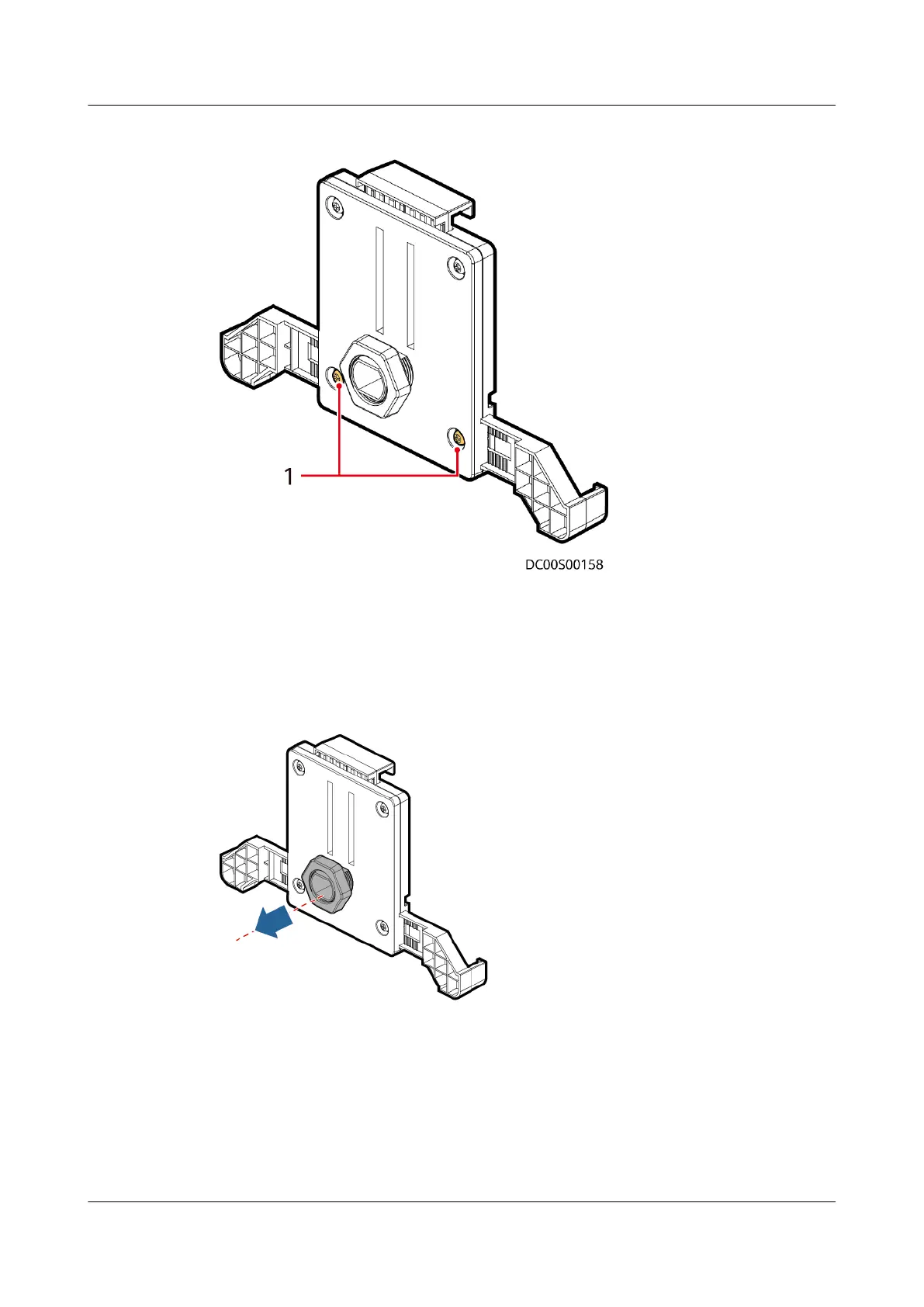

Figure 4-49 Adjusting screws
(1) Adjustment screws
Step 2 Remove nuts from the PAD support, insert the support into the mounting holes on
the cabinet front door, and reinstall the nuts to secure the support to the front
door.
Figure 4-50 Removing the nut
Step 3 Route the PAD power cable to the cable hole in the PAD support and connect the
cable to the PAD.
Step 4 Adjust the feet above the PAD support and clamp the PAD to the PAD support.
